Customize Parameters

HINT:

The following can be customized.

1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

   Tilt & Telescopic

   TILT & TELESCOPIC - CUSTOMIZE PARAMETERS



   DISPLAY	DEFAULT	CONTENTS	SETTING
   Autoaway/Return function	ON	ON/OFF of the auto away/return function	ON/OFF

2. AIR CONDITIONING SYSTEM

   Air Conditioner

   AIR CONDITIONER - CUSTOMIZE PARAMETERS



   Tester Display	Default	Contents	Setting
   Shift Set Temperature (Set Temp Shift)	NORMAL	To control with the shifted temperature against the display temperature	+2 C/+1 C/NORMAL/-1C/-2 C
   Air Inlet Mode (Air Inlet Mode)	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode	MANUAL/AUTO
   Compressor Mode (Compressor Mode)	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	MANUAL/AUTO
   Compressor/DEF Mode (Comprs/DEF Oper)	LINK	Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF	MANUAL / LINK
   Evaporator Control (Evap Ctrl)	AUTO	Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up	MANUAL/AUTO
   Emission Gas Sensor Shift (Gas Sens Shift)	NORMAL	Function to change the sensitivity of the exhaust gas sensor	MU MORE / MORE / LI MORE / NORMAL / LI LESS / LESS / MU LESS
   Button Press Buzzer (Button Prs Buz)	ON	Function to sound a buzzer when button is pressed	OFF / ON
   Foot/DEF Auto Mode (Foot/DEF Mode)	ON	Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON	OFF/ON
   Foot/DEF Auto Blow Up (Auto Blow Up)	ON	Function to change the blower level automatically when the defroster is ON	OFF/ON
   Ambient Temperature Shift (Ambient Tmp Sft)	NORMAL	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3 C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C
   Foot Air Leak (Foot Air Leak)	ON	Function to cut off the airstream felt underfoot while the vehicle is moving	OFF / ON

3. THEFT DETERRENT SYSTEM

   Security

   SECURITY - CUSTOMIZE PARAMETERS



   Display (Item)	Default	Contents	Setting
   Warning by Horn	ON	Function that allows vehicle horns and theft deterrent horn to be used as warning device.	ON/OFF
   Passive Mode	OFF	Passive mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened: Unlock any door by key or wireless operation Reconnect battery Turn the engine switch on (IG)	ON/OFF
   Entry Delay Time	14s	Function that changes entry delay time (time before warning starts) for PASSIVE MODE	0 s/14 s/30 s

4. LIGHTING SYSTEM

   Illuminated Entry

   ILLUMINATED ENTRY - CUSTOMIZE PARAMETERS



   Display	Default	Contents	Setting
   I/L when ACC OFF	ON	Function to light the interior light when the engine switch is operated from on (IG) to off	ON / OFF
   Lighting Time	15s	To change the lighting time after closing the door. (It will quickly fade out in case of turning the engine switch on (IG))	7.5s/15s/30s
   Light Control	ON	Function to light up the step light and door inside handle light when the engine switch is on (IG) and the shift position is not P.	ON / OFF
   I/L ON W / Unlock	ON	Function to light, the interior light etc. when the door is unlocked with a transmitter, door key or door lock control switch.	ON / OFF
   Foot Light Set Up	ON	Function to light up foot light.	ON / OFF
   Seat Light Control	AVAIL	Function to light up the seat light when unlocking with the door key cylinder.	NOT AVL / AVAIL
   Steering Light Control	AVAIL	Function to light up the steering light when unlocking with the door key cylinder.	NOT AVL / AVAIL
   Shift Light Control	AVAIL	Function to light up the shift light when unlocking with the door key cylinder.	NOT AVL / AVAIL

   HINT:

   Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

   Light Control

   LIGHT CONTROL - CUSTOMIZE PARAMETERS



   Display	Default	Contents	Setting
   Light Auto OFF Delay	30s	Function to keep on lighting the headlight for a certain period of time after closing all the doors with the engine switch turned off from on (IG) to off under the condition that the light control switch is at HEAD or AUTO with the headlight ON.	OFF / 30s / 60s / 90s

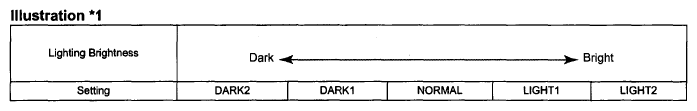

   Sensitivity	NORMAL	To adjust the sensitivity of the lighting illumination.*1	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
   Disp Ex ON Sen	NORMAL	Changes the brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock lamp. Refer to the illustration. *2	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
   Disp Ex OFF Sen	NORMAL	Changes the brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock lamp. Refer to the illustration. *3	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
   Foot Light Time (Driver's Side)	15s	Function to set how long the foot light stays on (driver's side).	OFF/7.5s/15s/30s
   Foot Light Time (Passenger's Side)	15s	Function to set how long the foot light stays on (passenger's side).	OFF/7.5s/15s/30s
   DRL Function*	ON	DRL control	ON / OFF
   HINT: *:Except Canada

   Fig 1: Lighting Illumination Control Chart (1 Of 3)
