Inspection Procedure

1. Check that the engine starts normally.

   OK:

   Engine starts normally.

NG :  GO TO

OK : Go to Next Step

1. Using the Techstream ACTIVE TEST, generate a control command and then check that the rear window defogger operates.

   A/C Amplifier Assembly (A/C ECU)

   ACTIVE TEST



   Tester Display	Test Part	Control Range	Diagnostic Note
   Defogger Relay (Rear)	Operate rear window defogger	OFF/ON	-

   Result

   RESULT CHART



   Result	Proceed to
   Rear window defogger operates normally	A
   Rear window defogger operates abnormally	B

B :  Go to step  4

A : Go to Next Step

1. Temporarily replace the multi-display with a new or normally functioning one.
2. Check that the malfunction disappears.

   OK:

   Malfunction disappears.

NG : REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

OK : REPLACE MULTI-DISPLAY

1. Remove the DEFOG, ALT, LH J/B-AM and RH J/B-B fuses from the engine room No. 1 relay block.
2. Remove the AM2 fuse from the cowl side junction block RH.
3. Remove the LH-IG fuse from the cowl side junction block LH.
4. Measure the resistance of the fuses.

   Standard resistance:

   Below 1 Ω

NG : REPLACE FUSE

OK : Go to Next Step

1. Remove the DEFOG relay from the engine room No.1 relay block.
2. Measure the resistance of the relay.

   Standard resistance

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Specified Condition
   3-4	Below 1 Ω
   3-5	10 kΩ or higher
   3-5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

NG : REPLACE RELAY

Fig 1: Inspecting Relay (DEFOG)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. for 3GR-FE, 3GR-FSE:
   1. Remove the DEFOG relay from the engine room No. 1 relay block.
   2. Disconnect the A7 ECM connector.
   3. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION CHART



      Tester Connection	Condition	Specified Condition
      Relay block DEFOG relay terminal 1 - Body ground	Engine switch on (IG)	11 to 14 V
      Relay Block DEFOG relay terminal 5 - Body ground	Always	11 to 14 V

   4. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION CHART



      Tester Connection	Condition	Specified Condition
      Relay block DEFOG relay terminal 2 - A7-13 (RDEF)	Always	Below 1 Ω

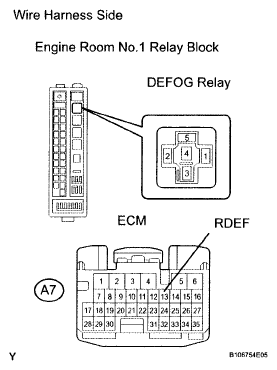

      Fig 2: Identifying A7 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for 1UR-FSE:
   1. Remove the DEFOG relay from the engine room No. 1 relay block.
   2. Disconnect the A7 ECM connector.
   3. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION CHART



      Tester Connection	Condition	Specified Condition
      Relay block DEFOG relay terminal 1 - Body ground	Engine switch on (IG)	11 to 14 V
      Relay Block DEFOG relay terminal 5 - Body ground	Always	11 to 14 V

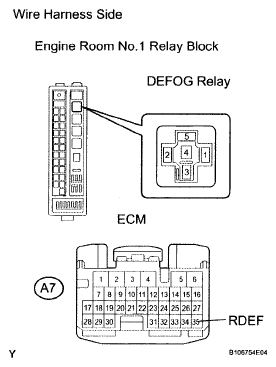

      Fig 3: Identifying A7 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION CHART



      Tester Connection	Condition	Specified Condition
      Relay block DEFOG relay terminal 2 - A7-35 (RDEF)	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : Go to Next Step

1. Disconnect the U20 and V20 defogger connectors.
2. Disconnect the DEFOG relay from the engine room No. 1 relay block.
3. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Specified Condition
   V20-1 - Relay block DEFOG relay terminal 3	Below 1 Ω
   U20-1 - Body ground	Below 1 Ω
   Relay block DEFOG relay terminal 4 - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 4: Identifying U20 And V20 Defogger Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Turn the engine switch on (IG).
2. Turn the defogger switch ON.
3. Check the voltage at the center of each defogger wire, as shown in the illustration.

   Standard voltage

   VOLTAGE SPECIFICATION CHART



   Voltage	Criteria
   Approx. 5 V	Wire is not broken
   Approx. 10 or 0 V	Wire is broken

   HINT:

   If there is approximately 10 V, the wire may be faulty between the center of the wire and the wire end on the battery side. If there is no voltage, the wire may be faulty between the center of the wire and the wire end on the ground side.

   NOTE: When measuring voltage, wrap a piece of tin foil around the tip of the negative tester probe and press the foil against the wire with your finger, as shown in the illustration.
