Customize Parameters

HINT:

The following items can be customized.

1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

   Power tilt and power telescopic steering column

   POWER TILT AND POWER TELESCOPIC STEERING COLUMN REFERENCE CHART



   Display	Default	Contents	Setting
   Autoaway/Return function	ON	ON/OFF of the auto away/return function	ON/OFF

2. AIR CONDITIONING SYSTEM

   Air Conditioning System

   AIR CONDITIONING SYSTEM REFERENCE CHART



   Display (Item)	Default	Contents	Setting
   Set Temperature Shift	NORMAL	To control with the shifted temperature against the display temperature	+2 C / +1 C / NORMAL / -1 C / -2 C
   Air Inlet Mode	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode	MANUAL/AUTO
   Compressor Mode	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	MANUAL/AUTO
   Compressor/Air Inlet DEF operation)	LINK	Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF	MANUAL / LINK
   Emission Gas Sensor Shift	NORMAL	Function to change the sensitivity of the exhaust gas sensor	MU MORE / MORE / LI MORE / NORMAL / LI LESS / LESS / MU LESS
   Button Press Buzzer	ON	Function to sound a buzzer when button is pressed	OFF / ON
   Foot/DEF Auto Mode	ON	Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON	OFF / ON
   Foot/DEF Automatic Blow Up Function	ON	Function to change the blower level automatically when the defroster is ON	OFF / ON
   Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3 C / +2 C / +1 C / Normal / -1 C / -2C / -3C
   Foot Air Leak	ON	Function to cut off the airstream felt underfoot while the vehicle is moving	OFF / ON

3. THEFT DETERRENT SYSTEM

   Security

   SECURITY REFERENCE CHART



   Display (Item)	Default	Contents	Setting
   Warning by Horn	ON	Function that allows vehicle horns and theft deterrent horn to be used as warning device.	ON / OFF
   Passive Mode	OFF	Passive arming mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened: Unlock any door by key or wireless operation Turn power switch ON (IG)	ON / OFF
   Entry Delay Time	14s	Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE	0s/14 s/30s

4. LIGHTING SYSTEM

   Illuminated entry

   ILLUMINATED ENTRY REFERENCE CHART



   Display	Default	Contents	Setting
   I/L when ACC OFF	ON	Function to light the interior light when the power switch is operated from ON (IG or ACC) to OFF	ON / OFF
   Lighting Time	15s	Function to change the lighting time after closing the door. (It will quickly fade out in case of turning the power switch ON (IG))	7.5s / 15s / 30s
   Light Control	ON	Function to light up step light and door inside handle light when the power switch is ON (IG) and shift position is not P	ON / OFF
   I/L ON / Unlock	ON	Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch.	ON / OFF
   Seat Light Control	AVAIL	Function to light up the seat light when unlocking with the door key cylinder	NOT AVL / AVAIL
   Steering Light Control	AVAIL	Function to light up the steering light when unlocking with the door key cylinder	NOT AVL / AVAIL
   Shift Light Control	AVAIL	Function to light up the shift light when unlocking with the door key cylinder	NOT AVL / AVAIL

   HINT:

   Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

   Light control

   LIGHT CONTROL REFERENCE CHART



   Display	Default	Contents	Setting
   Light Auto OFF Delay	30s	Function to keep on lighting the headlight for a certain period of time after closing all the doors with the power switch turned from ON to OFF under the condition that the light control switch is at HEAD or AUTO with the headlight ON	OFF / 30s / 60s / 90s
   Sensitivity	NORMAL	Function to adjust the sensitivity of lighting illumination*1.	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
   Disp Ex ON Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to Fig 2for illustration*2.	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
   Disp Ex OFF Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to Fig 3for illustration*3.	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
   Foot Light Time (Driver's Side)*4	15s	Function to set how long foot light stays on (driver's side)	OFF / 7.5s / 15s / 30s
   Foot Light Time (Passenger's Side)*4	15s	Function to set how long foot light stays on (passenger's side)	OFF/7.5s / 15s / 30s
   Foot Light Set up	ON	Function to light up foot light	ON / OFF
   DRL Function*	ON	DRL control	ON / OFF
   HINT: *:Except Canada

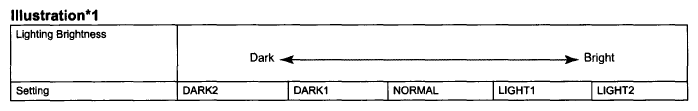

   Fig 1: Light System Reference Chart - Illustration*1
