Front Speed Sensor: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. TURN POWER SWITCH OFF
   1. Turn the power switch OFF, and check that the "READY" indicator turns off.
2. REMOVE FRONT WHEEL
3. DISCONNECT CONNECTOR
   1. Disconnect the connector from the front speed sensor LH.
      NOTE:

      • Be careful not to damage the speed sensor.
      • Prevent foreign matter from adhering to the speed sensor.
        Fig 1: Locating Connector From Front Speed Sensor LH

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH  (See REMOVAL )
5. REMOVE FRONT DISC  (See DISASSEMBLY )
6. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH  (See REMOVAL )
7. REMOVE FRONT SPEED SENSOR LH
   1. Install the 3 hub bolts. Placing an aluminum plate below the hub and bearing, hold them in a vise.
      NOTE: Replace the hub and bearing if it is dropped or receives a strong shock.
   2. Using a pin punch (3 mm) or hammer, remove the 2 pins from the SST (09520-00031) and separate the attachment (09521-00010).

      SST 09520-00031

   3. Using SST and 2 bolts (90101-12007), remove the sensor from the hub and bearing.

      SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

      NOTE:

      • Keep the sensor away from magnets.
      • Pull the sensor off straight, taking care not to make contact with the sensor rotor.
      • If the sensor rotor is damaged or deformed, replace the hub and bearing assembly.
      • Do not scratch the area where the sensor contacts the hub and bearing.
      • Do not attach foreign matter to the sensor rotor.

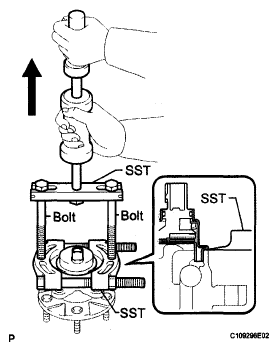

        Fig 2: Removing Sensor From Hub And Bearing

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
