INSTALL NO. 2 SHIFT CABLE GROMMET RETAINER
1. Pass the control cable from the cabin to the engine compartment.
2. Install the No. 2 shift cable grommet retainer with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Move the shift lever to the N position.

  Fig 1: Locating No. 2 Shift Cable Grommet Retainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transmission control cable assembly as shown in the illustration.
  HINT:
  - Install the floor shift cable with the uneven surface facing up.
  - Securely engage the claws of the floor shift cable.

    Fig 2: Installing Floor Shift Cable
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the control cable to the bracket with a new clip.

  Fig 3: Locating Transmission Cable Bracket Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the control cable to the control shaft lever with the nut.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

  Fig 4: Locating Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push in the lock piece of the transmission control cable.
  NOTE: Firmly push in the lock piece until the slider lock is engaged.

  HINT:

  After pushing in the lock piece, make sure that the boot is not deformed.

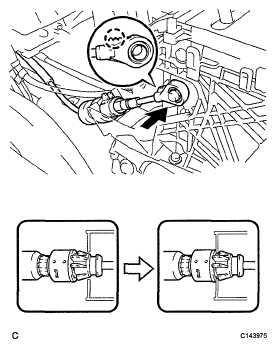

  Fig 5: Pushing Lock Piece Of Transmission Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER AIRBAG SENSOR ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 AIR CLEANER INLET
(Refer to appropriate step under INSTALLATION ).
INSTALL AIR CLEANER CASE SUB-ASSEMBLY
(Refer to appropriate step under INSTALLATION ).
INSTALL AIR CLEANER CAP SUB-ASSEMBLY
INSTALL AIR CLEANER INLET ASSEMBLY
(Refer to appropriate step under INSTALLATION ).
INSTALL AIR CONDITIONING UNIT
HINT:

(See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH
INSTALL COOL AIR INTAKE DUCT SEAL
(Refer to appropriate step under INSTALLATION ).
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
