2008 Lexus ES 350FACTORY OEM SERVICE PROCEDURE
Automatic Transaxle Assembly: Installation
- INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY

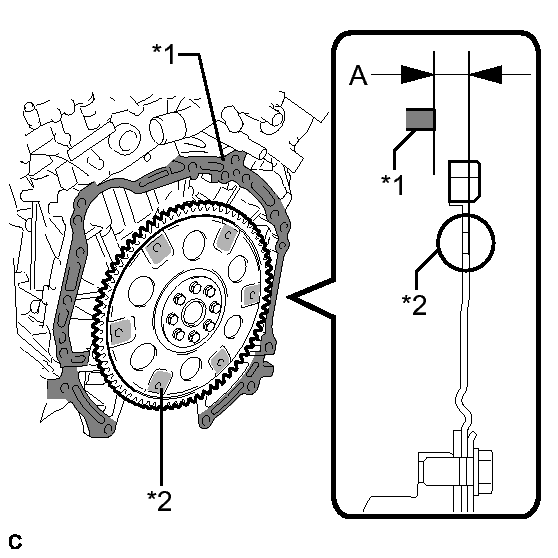

- Using vernier calipers and a straightedge, measure dimension "A" between the transaxle fitting part of the engine (1) and the converter fitting part of the drive plate (2).
- Aligning the matchmarks on the transaxle case and torque converter clutch assembly, engage the splines of the input shaft and turbine runner.NOTE: Do not push on the torque converter when aligning the matchmarks.
