Front Speed Sensor: Inspection

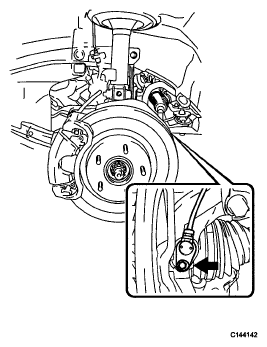

- INSPECT FRONT SPEED SENSOR
- Inspect the front speed sensor. If any of the following occurs, replace the front speed sensor with a new one:
- The surface of the front speed sensor is cracked, dented, or chipped off.
- The connector or wire harness is scratched, cracked, or damaged.
- The front speed sensor has been dropped.
- Measure the resistance according to the value(s) in the table below.
Standard resistance:
RH
STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition 1 (FR+) - 2 (FR-) Always 1.4 to 1.8 kΩ at 20°C (68°F) 1 (FR+) - Body ground Always 10 kΩ or higher 2 (FR-) - Body ground Always 10 kΩ or higher LH
STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition 1 (FL+) - 2 (FL-) Always 1.4 to 1.8 kΩ at 20°C (68°F) 1 (FL+) - Body ground Always 10 kΩ or higher 2 (FL-) - Body ground Always 10 kΩ or higher If the value is not as specified, replace the front speed sensor.
- Inspect the front speed sensor. If any of the following occurs, replace the front speed sensor with a new one:
