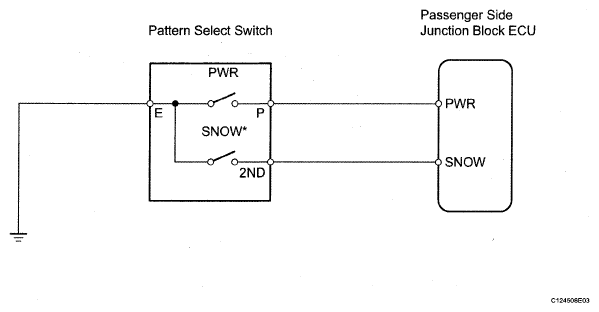

Pattern Select Switch Snow Mode Circuit: Wiring Diagram
HINT:
*: Pattern Select Switch (ECT SNOW Switch)
When the ECT SNOW switch is pushed, the switch contact is made and the ECT SNOW mode is selected.
To cancel the ECT SNOW mode, push the ECT SNOW switch again.
The ECT SNOW mode is automatically canceled when the ignition switch is turned OFF.
