2007 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. CHECK WIRE HARNESS (PATTERN SELECT SWITCH - BODY GROUND)
    1. Disconnect the E11 pattern select switch connector.
      Fig 1: Identifying E11 Pattern Select Switch Connector Terminals
      G05289632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the wire harness side connector.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      E11-3 (E) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to Next Step

  2. INSPECT PATTERN SELECT SWITCH
    1. Measure the resistance of the switch.
      Fig 2: Identifying E3 And P7 Connector Terminals
      G05289633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      3 (E) - 7 (P) Pattern select switch (PWR) Below 1 Ω
      3 (E) - 7 (P) Pattern select switch (NORM) 10 kΩ or higher

    NG: REPLACE PATTERN SELECT SWITCH

    OK: Go to Next Step

  3. CHECK WIRE HARNESS (PASSENGER SIDE JUNCTION BLOCK ECU - PATTERN SELECT SWITCH)

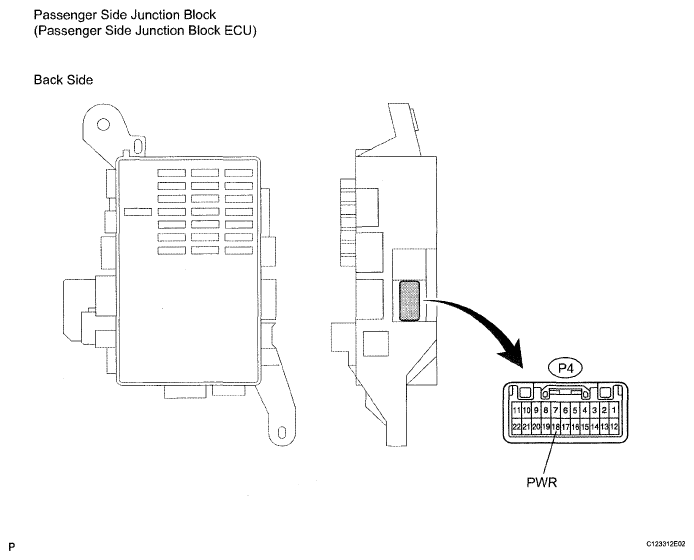

    Fig 3: Identifying P4 Passenger Side Junction Block Connector Terminals
    G05289634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the P4 ECU connector.
    2. Measure the resistance of the passenger side junction block ECU.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      P4-18 (PWR) - Body ground Pattern select switch (PWR) Below 1 Ω
      P4-18 (PWR) - Body ground Pattern select switch (NORM) 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
