2007 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. INSPECT FUSE (ETCS)
    Fig 1: Inspecting ETCS Fuse From Engine Room No. 1 Relay Block
    G05291485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the ETCS fuse from the engine room No. 1 relay block.
    2. Measure the resistance of the fuse.

      Standard resistance:

      Below 1 Ω

    NG: CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    OK: Go to next step

  2. READ VALUE OF INTELLIGENT TESTER (+BM VOLTAGE)
    1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
      Fig 2: Identifying E2 ECM Connector Terminals
      G05291486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch ON.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / +BM.

      Standard voltage:

      9 to 14 V

    OK: CHECK FOR INTERMITTENT PROBLEM

    NG: Go to next step

  3. CHECK WIRE HARNESS (ETCS FUSE - ECM AND BATTERY)
    1. Remove the ETCS fuse from the engine room No. 1 relay block, junction block.
    2. Disconnect the E2 ECM connector.

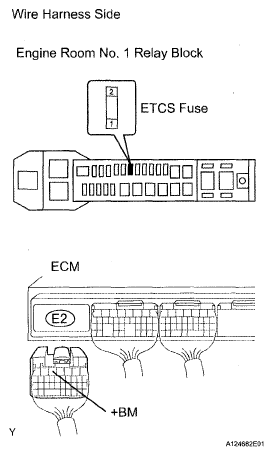

      Fig 3: Disconnecting E2 ECM Connector Terminals
      G05291487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      Relay block ETCS fuse terminal 1 - Battery positive (+) terminal Below 1 Ω
      Relay block ETCS fuse terminal 2 - E2-5 (+BM) Below 1 Ω
      Relay block ETCS fuse terminal 1 or Battery positive (+) terminal - Body ground 10 kΩ or higher
      Relay block ETCS fuse terminal 2 or E2-5 (+BM) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE ECM
