2007 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. CHECK FOR EXHAUST GAS LEAK
    1. Allow the engine to idle.
    2. Check for an exhaust gas leak around the HO2S.

      OK:

      No leak from the HO2S.

    NG: REPAIR LEAK

    OK: Go to next step

  2. CHECK HEATED OXYGEN SENSOR

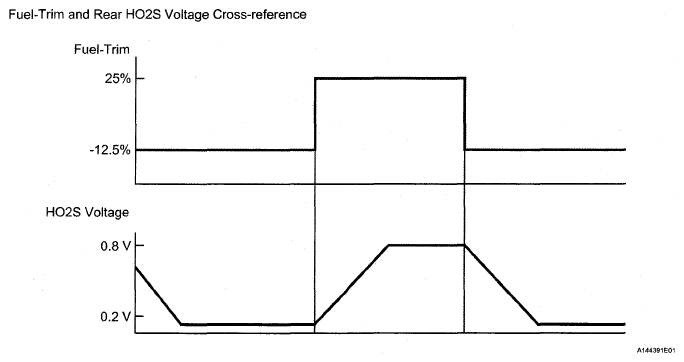

    Fig 1: Fuel-Trim And Rear HO2S Voltage Cross-Reference Graph
    G05291468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Warm up the engine.
    2. Allow the engine to idle.
    3. Select the tester menus: ENHANCED OBD II, ACTIVE TEST AND A/F CONTROL.
    4. Check the O2S B1 S2 (O2S B2 S2) values when the A/F CONTROL is -12.5% (Lean fuel-trim).
    5. Check the O2S B1 S2 (O2S B2 S2) values when the A/F CONTROL is 25% (Rich fuel-trim).

      Standard

      STANDARD REFERENCE CHART

      A/F CONTROL O2S B1 S2 (O2S B2 S2)
      -12.5% Less than 0.2 V
      25% More than 0.8 V

    NG: REPLACE HEATED OXYGEN SENSOR

    OK: Go to next step

  3. CHECK DTC
    1. Clear DTC.
    2. Turn the ignition switch OFF.
    3. Disconnect the cable from the negative battery terminal and wait for 1 minute.
    4. Connect the cable to the negative battery terminal.
    5. Start the engine.

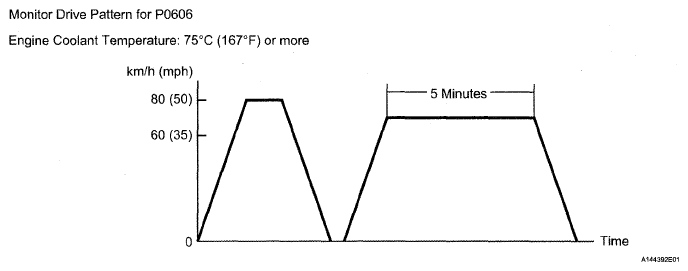

      Fig 2: Engine Coolant Temperature Graph
      G05291469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Perform the drive pattern.
      1. Warm up the engine.
      2. Accelerate the vehicle until 80 km/h (50 mph) and stop the vehicle.
      3. Drive the vehicle by 60 to 80 km/h (35 to 50 mph) for 5 minutes or more.
    7. Check DTC.

      OK:

      P0606 is not present.

    NG: REPLACE ECM

    OK: INTERMITTENT PROBLEMS
