2007 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Intake Manifold: Inspection

  1. INSPECT INTAKE MANIFOLD SUB-ASSEMBLY UPPER
    1. Using a precision straightedge and feeler gauge, measure the surface contacting the intake manifold upper for warpage.

      Maximum warpage: 0.10 mm (0.0039 in.)

      If the warpage is greater than the maximum, replace the intake manifold sub-assembly upper.

      Fig 1: Inspecting Intake Manifold Sub-Assembly Upper
      G05289276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT INTAKE MANIFOLD SUB-ASSEMBLY LOWER
    1. Using a precision straightedge and feeler gauge, measure the surface contacting the cylinder head and intake manifold for warpage.

      Maximum warpage: 0.15 mm (0.0059 in.)

      If the warpage is greater than the maximum, replace the intake manifold sub-assembly lower.

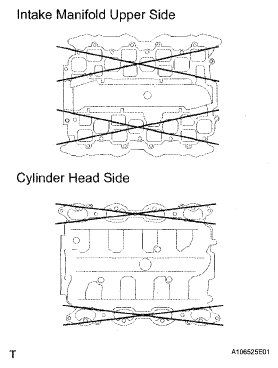

      Fig 2: Inspecting Intake Manifold Sub-Assembly Lower
      G05289277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
