2007 Lexus SC 430FACTORY OEM SERVICE PROCEDURE
VVT Sensor: Removal
- DISCHARGE FUEL SYSTEM PRESSURE
- DRAIN ENGINE COOLANT (See COOLANT )
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE V-BANK COVER (See REMOVAL )
- REMOVE NO. 1 AIR CLEANER INLET (See REMOVAL )
- REMOVE INTAKE AIR CONNECTOR PIPE (See REMOVAL )
- REMOVE INTAKE MANIFOLD
- Remove the intake manifold (see REMOVAL ).

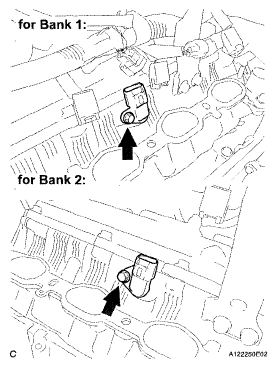

- REMOVE VVT SENSOR
- Remove the 2 bolts and 2 sensors.
