VVT Sensor: Installation

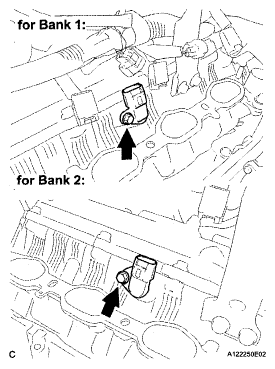

- INSTALL VVT SENSOR
- Install the 2 sensors with the 2 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- Install the 2 sensors with the 2 bolts.
- INSTALL INTAKE MANIFOLD
- Install the intake manifold (see INSTALLATION ).
- INSTALL INTAKE AIR CONNECTOR PIPE (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see
INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see
INITIALIZATION
).
- ADD ENGINE COOLANT (See COOLANT )
- CHECK FOR ENGINE COOLANT LEAKS
- Check for engine coolant leaks (see COOLING SYSTEM ).
- INSTALL NO. 1 AIR CLEANER INLET (See INSTALLATION )
- INSTALL V-BANK COVER (See INSTALLATION )
