2007 Lexus RX 400h FWDFACTORY OEM SERVICE PROCEDURE
Front Speed Sensor: Removal
- REMOVE FRONT WHEEL
- REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY
- Remove the bolts, screws, clips and front fender splash shield sub-assembly.

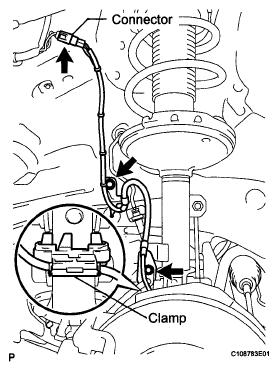

- REMOVE FRONT SPEED SENSOR
- Disconnect the front speed sensor connector.
- Remove the 2 bolts from the body and the shock absorber assembly.
- Remove the clamp from the steering knuckle.
- Remove the bolt and the front speed sensor.
NOTE:- Prevent foreign matter from attaching to the sensor tip.
- Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
