2007 Lexus RX 400h FWDFACTORY OEM SERVICE PROCEDURE
Abs Main Relay: Inspection

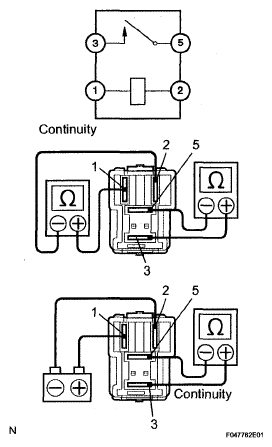

- INSPECT ABS MAIN RELAY (ABS NO.1 RELAY, ABS NO.2 RELAY)
- Measure the resistance according to the value(s) in the table below.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition Terminal 1 - Terminal 2 100 Ω Terminal 3 - Terminal 5 10 kΩ or higher (No Continuity) - Apply battery voltage between terminals 1 and 2.
- Measure the resistance according to the value(s) in the table below.
Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition Terminal 3 - Terminal 5 Below 1 Ω - Measure the resistance according to the value(s) in the table below.
