2007 Lexus RX 350 FWDFACTORY OEM SERVICE PROCEDURE

Engine Control System: ECM: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
REMOVE ECM
1. Disconnect the 5 ECM connectors.
2. Disconnect the wire harness clamp.
3. Remove the 2 nuts and ECM.
4. Remove the 2 screws and the ECM No. 1 bracket from the ECM.
5. Remove the 2 screws and the ECM No. 2 bracket from the ECM.
6. Remove the 2 screws and the ECM No. 3 bracket from the ECM.

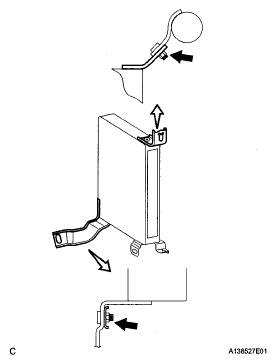

  Fig 1: Locating ECM Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
