2007 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Speed Sensor: Removal

  1. REMOVE SPEEDOMETER SENSOR
    1. Disconnect the sensor connector.
      Fig 1: Identifying Speedometer Sensor Connector
      G05282731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
    3. Remove the clip and the driven gear from the sensor.
    4. Remove the O-ring from the sensor.
      Fig 2: Identifying Speedometer Sensor
      G05282732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (NT) AND (SP2)
    1. Disconnect the sensor connectors.
    2. Remove the 2 bolts, revolution sensor (SP2) and (NT).

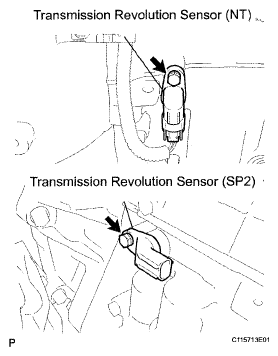

      Fig 3: Locating Transmission Revolution Sensors
      G05282733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 O-rings from the revolution sensor (SP2) and (NT).
      Fig 4: Identifying 2 O-Rings From Revolution Sensor SP2 And NT
      G05282734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
