Speed Sensor: Installation
- INSTALL SPEEDOMETER SENSOR
- Insert the speedometer driven gear in the speedometer sensor with the clip.
- Coat a new O-ring with ATF.
- Install the O-ring to the speedometer driven gear assembly.
- Install the sensor with the bolt.
Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)
- Connect the sensor connector.

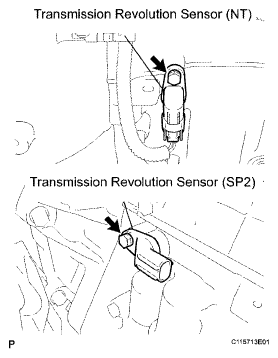

- INSTALL TRANSMISSION REVOLUTION SENSOR (NT) AND VEHICLE SPEED SENSOR (SP2)
- Coat 2 new O-rings with ATF and install them to the revolution sensor (SP2) and (NT).
- Install the revolution sensor (SP2) and (NT) with the 2 bolts.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- Connect the sensor connectors.
