2007 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Floor Shift Assembly: Disassembly

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
  2. REMOVE POSITION INDICATOR HOUSING ASSEMBLY
    Fig 1: Locating Floor Shift Lever Assembly Bolts
    G05282798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a small screwdriver, remove the shift lock release cover from the position indicator housing.
    2. Remove the position indicator housing assembly.
  3. REMOVE POSITION INDICATOR LIGHT GUIDE
    1. Disconnect the indicator light wire from the position indicator light guide.
    2. Remove the position indicator light guide.
  4. REMOVE SLIDE COVER AND NO. 2 SLIDE COVER
  5. REMOVE SHIFT LEVER GUIDE HOUSING
    1. Disconnect the shift lock control ECU connector from the shift lever plate.
    2. Disconnect the 2 transmission control switches and the shift lock control switch from the shift lever guide housing.
    3. Remove the 4 bolts, nuts and the shift lever guide housing.
      Fig 2: Locating Shift Lever Guide Housing Bolts
      G05282799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISASSEMBLE SHIFT LEVER GUIDE HOUSING
    1. Using a screwdriver, pry up the 3 shift lever nuts.
    2. Using nippers, cut the 3 shift lever nuts off.

      HINT:

      Remove the shift lever lock pin of the shift lever nut in the same way.

    3. Remove the shift lever guide cushion.
    4. Remove the 3 screws shift lock control ECU and shift lock solenoid.
    5. Remove the shift lock control ECU bracket from the shift lock control ECU.
    6. Disconnect the transmission control switch connector from the shift lever guide housing.
    7. Remove the shift lock release button and spring.
    8. Using a screwdriver, pry up the shift lever nut.
    9. Using a nipper, cut the shift lever nut off.
    10. Remove the shift lever lock pin, the shift lock plate stopper and the cushion.

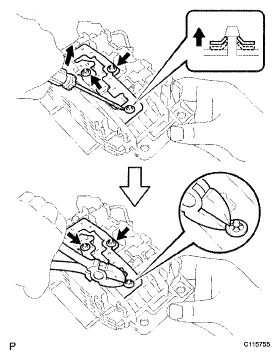

      Fig 3: Removing Shift Lever Nuts
      G05282800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT SHIFT LOCK CONTROL ECU, SHIFT LOCK SOLENOID, SHIFT LOCK CONTROL SWITCH AND TRANSMISSION CONTROL SWITCH
    1. Disengage the secondary locking device of the shift lock solenoid.
    2. Release the locking lug of the terminal 4 and 5, and pull the terminals out from the rear.

      HINT:

      Remove the transmission control switch in the same way.

      Fig 4: Disengaging Secondary Locking Device Of Shift Lock Solenoid
      G05282801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the shift lock solenoid.
    4. Using 2 mm diameter, steel wire, remove the pin and the shift lock solenoid link from the shift lock solenoid plunger.
    5. Disengage the secondary locking device of the shift lock control ECU.
    6. Release the locking lag of the terminal 1, 2 and 8 pull the terminals out from the rear.
    7. Remove the transmission control switch (D - 4 position).
    8. Release the locking lag of the terminal 5, 6 and 12 and pull the terminals out from the rear.
    9. Remove the transmission control switch (2 - L position).
    10. Release the locking lag of the terminal 7 and 14 and pull the terminals out from the rear.
      Fig 5: Removing Pin And Shift Lock Solenoid Link From Shift Lock Solenoid Plunger
      G05282802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT INDICATOR LIGHT WIRE
  9. REMOVE FLOOR SHIFT LEVER SUB-ASSEMBLY
    1. Using a magnetic finger, remove the detent shift lever pin and spring.
      Fig 6: Identifying Detent Shift Lever Pin And Spring
      G05282803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using 2 screwdrivers, remove the shift lever ring.
    3. Remove the pin and shift lever.
      Fig 7: Removing Shift Lever Ring
      G05282804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISASSEMBLE SHIFT LEVER PLATE SUB-ASSEMBLY
    1. Remove the nut, control lever, plate washer, 2 spacers and 2 O-rings.
      Fig 8: Removing Detent Shift Lever Pin And Spring
      G05282805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using pliers, remove the clip.
    3. Remove the swivel, 2 plate washers, shaft lower control bush and spacer.
    4. Remove the shift lever seal.
    5. Remove the 4 collars.
    6. Remove the 2 spring nuts.
