2007 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

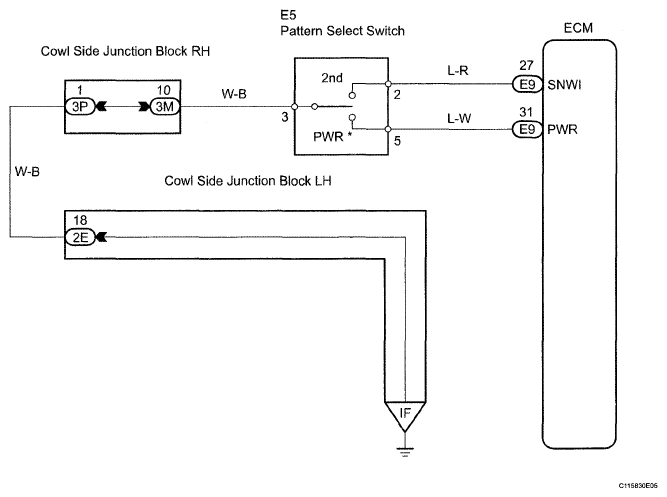

Pattern Select Switch Power Mode Circuit: Wiring Diagram
HINT:
*: Pattern select switch (PWR mode switch)
When the PWR mode switch is pushed, the switch contact is made and the PWR mode is selected.
To cancel the PWR mode, push the PWR mode switch once again.
