Combination Switch Matrix
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

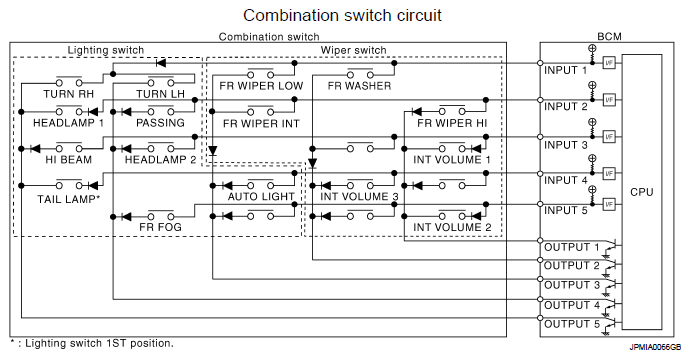

COMBINATION SWITCH INPUT-OUTPUT SYSTEM REFERENCE CHART
| Combination switch INPUT-OUTPUT system list | |||||
| System | OUTPUT 1 | OUTPUT 2 | OUTPUT 3 | OUTPUT 4 | OUTPUT 5 |
| INPUT 1 | - | FR WASHER | FR WIPER LOW | TURN LH | TURN RH |
| INPUT 2 | FR WIPER HI | - | FR WIPER INT | PASSING | HEADLAMP 1 |
| INPUT 3 | INT VOLUME 1 | - | - | HEADLAMP 2 | HI BEAM |
| INPUT 4 | - | INT VOLUME 3 | AUTO LIGHT | - | TAIL LAMP |
| INPUT 5 | INT VOLUME 2 | - | - | FR FOG | - |
NOTE:
Headlamp has a dual system switch.
