ASCD Brake Switch
- Turn ignition switch OFF.
- Disconnect ASCD brake switch harness connector.

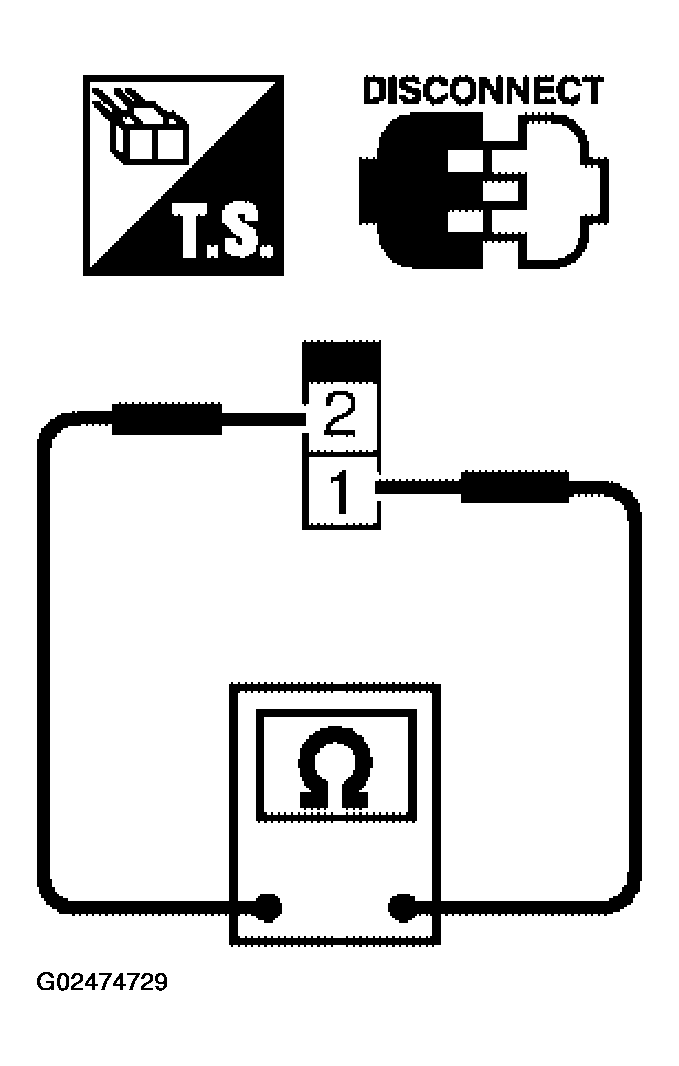

- Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
CONTINUITY CONDITION TABLECondition Continuity When brake pedal is fully released. Should exist. When brake pedal is slightly depressed. Should not exist. If NG, adjust ASCD brake switch installation, refer to "BRAKE PEDAL " and perform step 3 again.
