Key Switch Check
- CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II

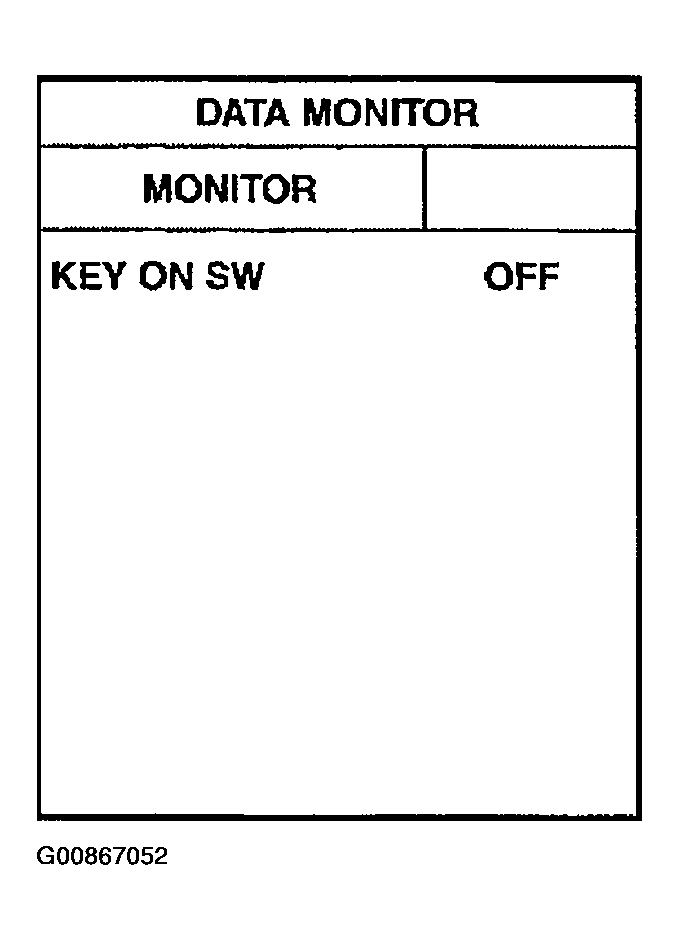

Check key switch "KEY ON SW" in DATA MONITOR mode with CONSULT-II. Refer to DATA MONITOR .
- When key is inserted to ignition key cylinder:
KEY ON SW: ON
- When key is removed from ignition key cylinder:
KEY ON SW: OFF
Without CONSULT-II

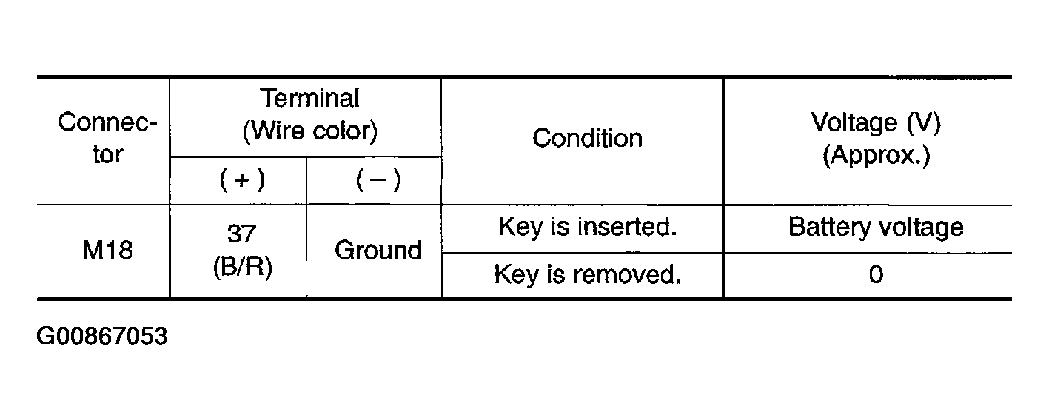

Check voltage between BCM connector M18 terminal 37 and ground.
- When key is inserted to ignition key cylinder:
