Multi Remote ENT

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect "CONSULT-II" to the data link connector.

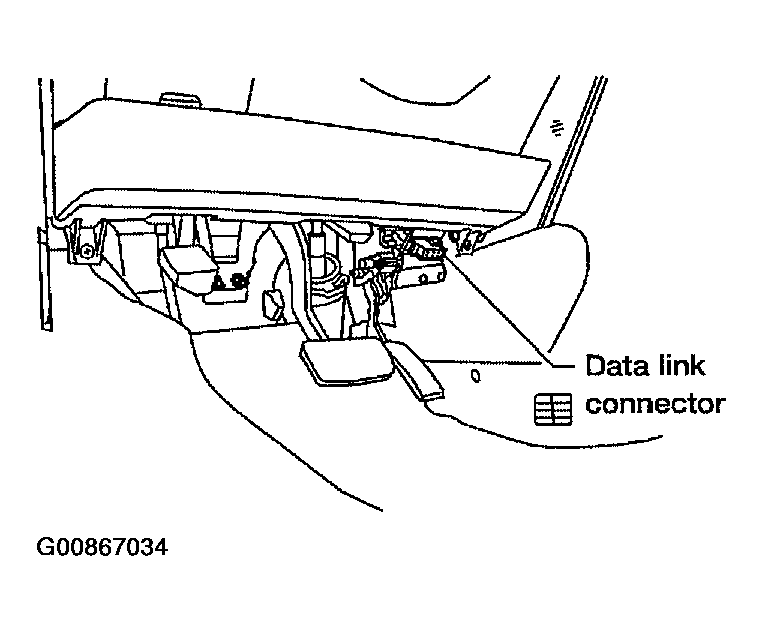

    Fig 1: Connecting "Consult-II" To The Data Link Connector
    G00867034Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START".

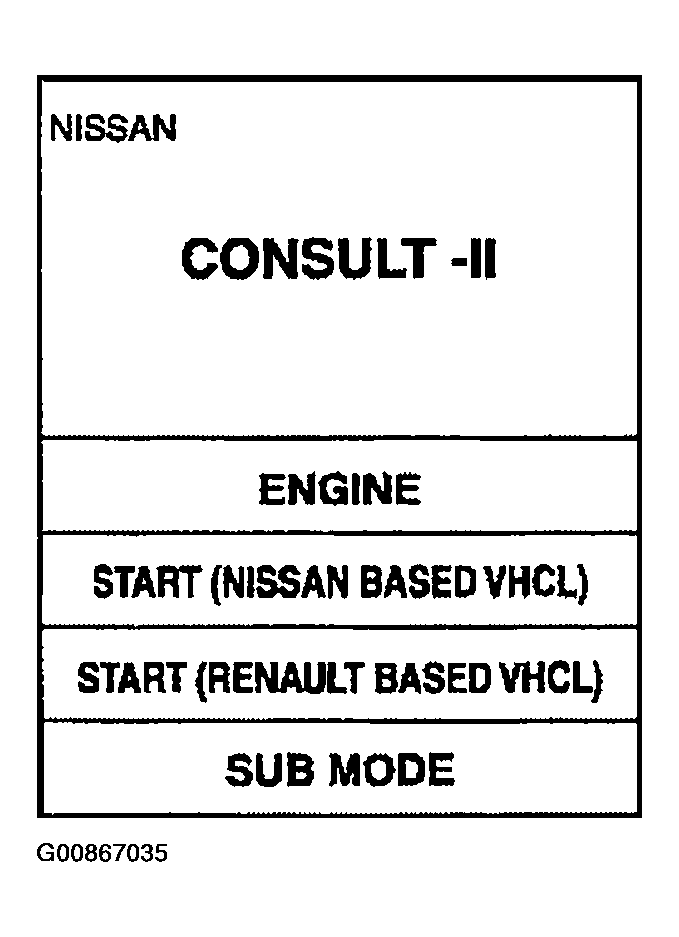

    Fig 2: Consult-II Display (Touch "START")
    G00867035Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

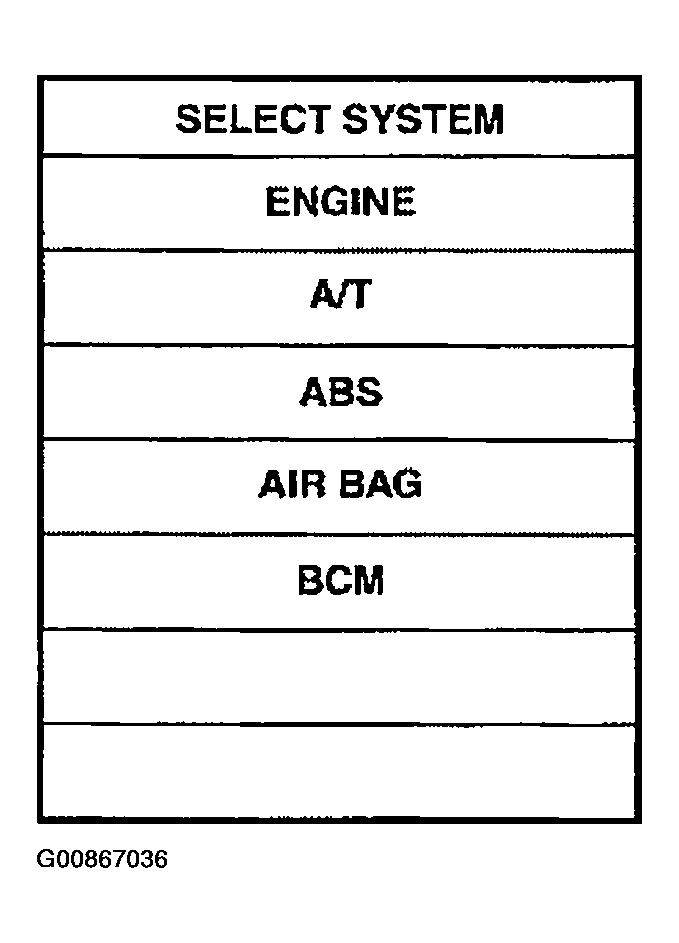

    Fig 3: Touch "BCM" Display
    G00867036Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".

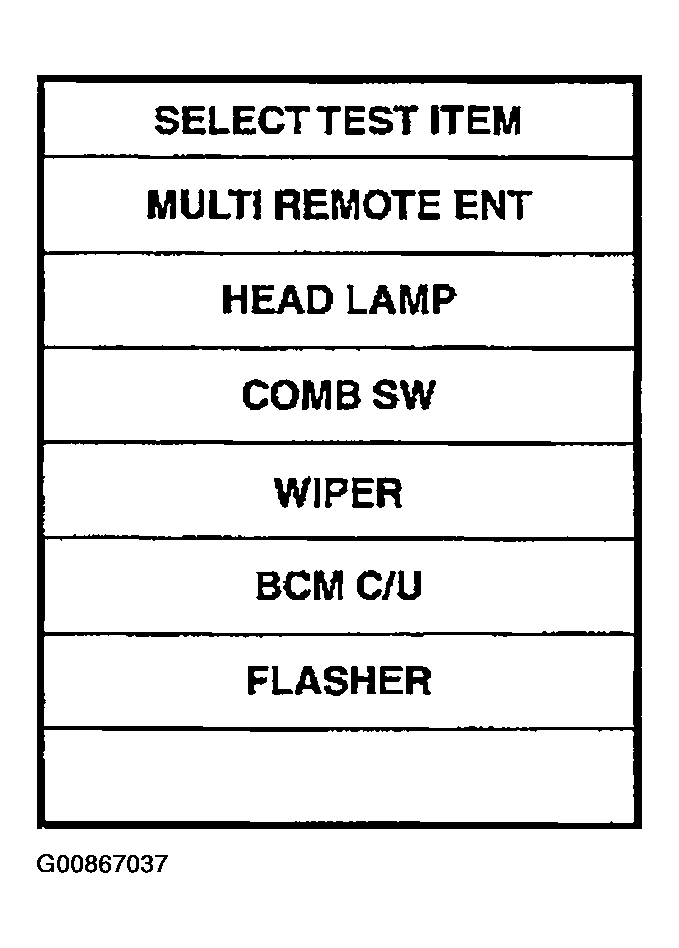

    Fig 4: Touch "Multi Remote ENT" Display
    G00867037Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode.

    "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

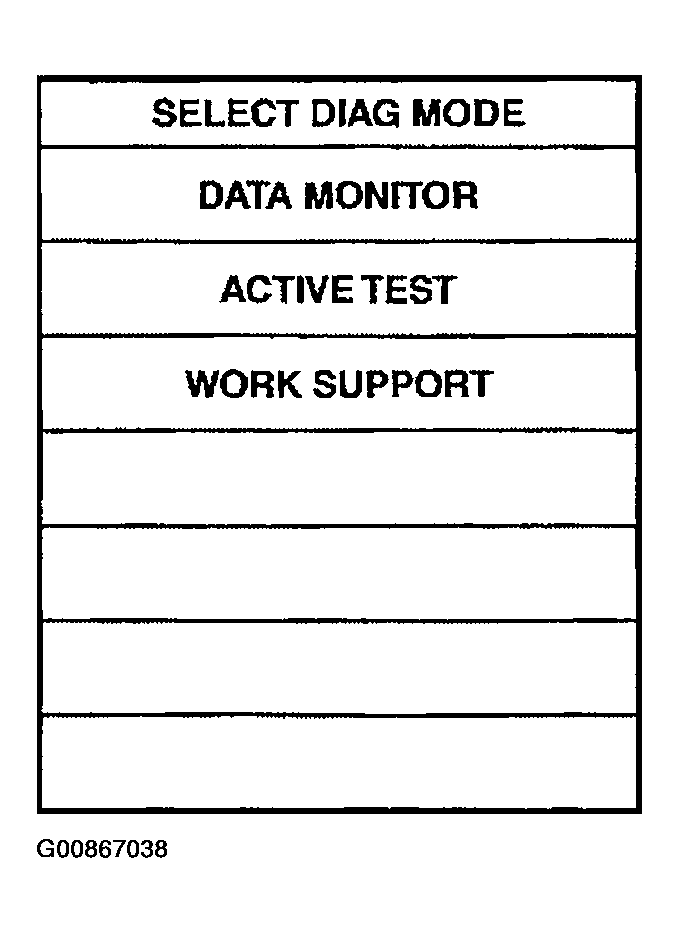

Fig 5: "Data Monitor", "Active Test" & "Work Support" Display
G00867038Courtesy of NISSAN MOTOR CO., U.S.A.
