Engine Switch: Inspection
- INSPECT ENGINE SWITCH

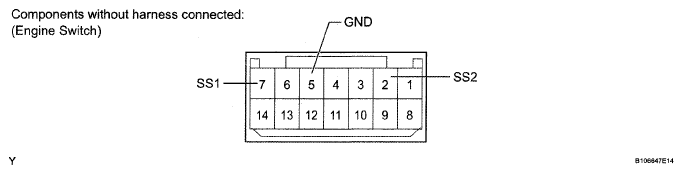

- Measure the resistance according to the value(s) in the table below.
Standard resistance
ENGINE SWITCHTester Connection Switch Position Specified Condition 7(SS1)-5(GND) Not pushed 10 kΩ or higher 2 (SS2) - 5 (GND) Not pushed 10 kΩ or higher 7 (SS1) - 5 (GND) Pushed Below 1 Ω 2 (SS2) - 5 (GND) Pushed Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the engine switch.

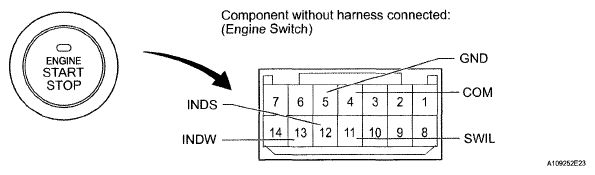

- Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.
HINT:
- If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator will not illuminate.
- If the voltage is too low, the indicator will not illuminate.
OK
ENGINE SWITCH VOLTAGE MEASUREMENTSMeasurement Condition Specified Condition Battery positive (+) → Terminal 11 (SWIL)
Battery negative (-) → Terminal 4 (COM) or 5 (GND)Illuminates Battery positive (+) → Terminal 12 (INDS)
Battery negative (-) → Terminal 4 (COM) or 5 (GND)Illuminates Battery positive (+) → Terminal 13 (INDW)
Battery negative (-) → Terminal 4 (COM) or 5 (GND)Illuminates Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the engine switch.
- Measure the resistance according to the value(s) in the table below.
