2007 Lexus LS 460LFACTORY OEM SERVICE PROCEDURE
Combination Meter: Reassembly
- INSTALL METER DISPLAY PANEL

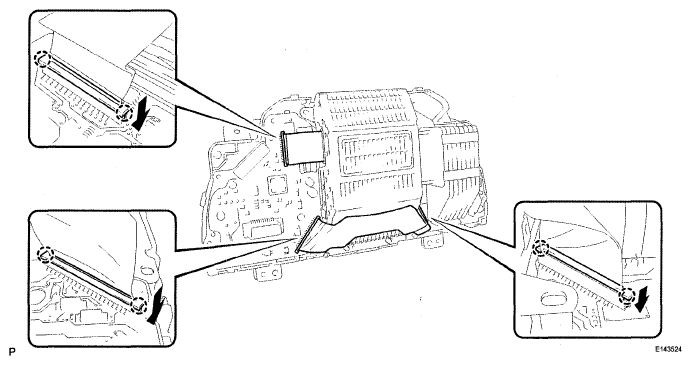

- Temporarily install the meter ECU.
- Attach the 6 claws to connect each wire harness.
- INSTALL COMBINATION METER COVER
- Install the meter cover with the 12 screws.
- INSTALL COMBINATION METER GLASS
- Attach the 6 claws to install the meter glass.
- Install the 2 screws.
- INSTALL NO. 1 COMBINATION METER BRACKET
- Install the bracket with the 4 screws.
