Rear Power Window Switch: Inspection
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLYΒ
- Measure the resistance according to the value(s) in the table below.
Standard resistance:Β

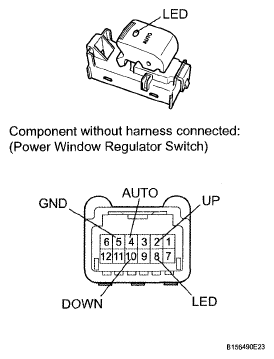

POWER WINDOW REGULATOR SWITCH ASSEMBLY RESISTANCETester Connection Switch Condition Specified Condition 2 (UP)-5 (GND) Manual UP operation Below 1 Ξ© 10 (DOWN)-5 (GND) Manual DOWN operation Below 1 Ξ© 4 (AUTO) - 5 (GND) AUTO UP / DOWN operation Below 1 Ξ© Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the power window regulator switch assembly.
- Check that the LED illuminates.
- Apply battery voltage to the power window regulator switch and check that the LED illuminates.
OK :Β
MEASUREMENT CONDITION CHART VOLTAGEMeasurement Condition Specified Condition Battery positive (+) β 8 (LED)
Battery negative (-) β 5 (GND)LED illuminates If the result is not as specified, replace the power window regulator switch assembly.
