Inspection Procedure

1. Check for LIN communication system DTCs related to the power window control system.

   Result:

   LIN COMMUNICATION SYSTEM



   Result	Proceed to
   DTC is output	A
   DTC is not output	B

A: GO TO LIN COMMUNICATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

B: GO TO NEXT STEP

1. Check if DTC B2312 is output.

   Result:

   FOR DTC (B2312)



   Result	Proceed to
   DTC is output	A
   DTC is not output	B

A: GO TO  DTC B2312

B: GO TO NEXT STEP

1. Use the Data List to check if the power window regulator motor is functioning properly.
   1. Intelligent tester

      D DOOR MOTOR:

      INTELLIGENT TESTER D DOOR MOTOR



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      D P/W UP SW	Driver side power window MANUAL UP switch signal/ON or OFF	ON: Driver side power window manual UP switch on master switch operated OFF: Driver side power window switch on master switch not operated	-
      D P/W DOWN SW	Driver side power window MANUAL DOWN switch signal/ ON or OFF	ON: Driver side power window manual DOWN switch on master switch operated OFF: Driver side power window switch on master switch not operated	-

   2. Techstream

      D-Door Motor:

      TECHSTREAM D DOOR MOTOR



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      D Door P/W Up SW	Driver side power window MANUAL UP switch signal/ON or OFF	ON: Driver side power window manual UP switch on master switch operated OFF: Driver side power window switch on master switch not operated	-
      D Door P/W Down SW	Driver side power window MANUAL DOWN switch signal/ ON or OFF	ON: Driver side power window manual DOWN switch on master switch operated OFF: Driver side power window switch on master switch not operated	-

      OK: Tester display changes normally when master switch is operated.

OK: Go to step   7

NG: GO TO NEXT STEP

1. Disconnect the P10 ECU connector.
2. Disconnect the N13 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   MASTER SWITCH - DRIVER SIDE DOOR ECU



   Tester Connection	Condition	Specified Condition
   P10-27 (SGND) - N13-12 (GND)	Always	Below 1 Ω
   P10-26 (CPBJ) - N13-11 (B)	Always	Below 1 Ω
   P10-27 (SGND) or N13-12 (GND) - Body ground	Always	10 kΩ or higher
   P10-26(CPBJ) or N13-11 (B) - Body ground	Always	10 kΩ or higher

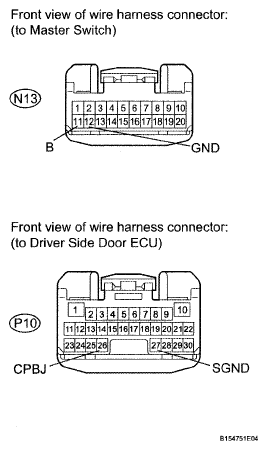

   Fig 1: Checking Harness And Connector (Master Switch - Driver Side Door ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Disconnect the N10 ECU connector.
2. Disconnect the N11 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   DRIVER SIDE DOOR ECU - DRIVER SIDE MOTOR



   Tester Connection	Condition	Specified Condition
   N10-5 (BDRJ) - N11-2 (B)	Always	Below 1 Ω
   N10-2(PWE) - N11-1(E)	Always	Below 1 Ω
   N10-5(BDRJ) or N11-2 (B) - Body ground	Always	10 kΩ or higher
   N10-2(PWE) or N11-1 (E) - Body ground	Always	10 kΩ or higher

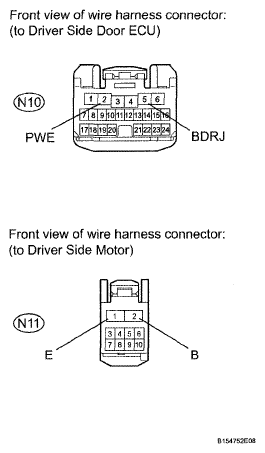

   Fig 2: Checking Harness And Connector (Driver Side Door ECU - Driver Side Motor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Disconnect the N13 switch connector.
2. Disconnect the N11 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   DRIVER SIDE MOTOR - MASTER SWITCH



   Tester Connection	Condition	Specified Condition
   N13-20 (UP) - N11-10 (UP1)	Always	Below 1 Ω
   N13-15 (DOWN) - N11-7 (DWN1)	Always	Below 1 Ω
   N13-20 (UP) or N11-10 (UP1) - Body ground	Always	10 kΩ or higher
   N13-15 (DOWN) or N11-7 (DWN1)-Body ground	Always	10 kΩ or higher

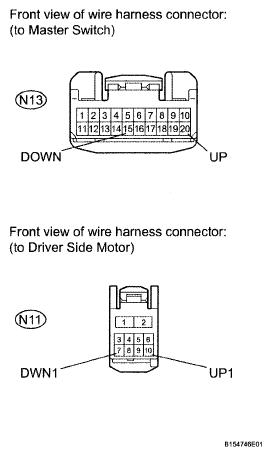

   Fig 3: Checking Harness And Connector (Driver Side Motor - Master Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Remove the motor.
2. Apply positive (+) battery voltage to the connector terminal 2.
   NOTE:

   • Do not apply positive (+) battery voltage to any terminals, except terminal 2, to avoid damaging the pulse sensor inside the motor.
   • Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door.
3. Apply negative (-) battery voltage to the connector terminals 1 and 7/10.
4. Check that the motor gear rotates smoothly as follows.
   Fig 4: Inspecting Front Power Window Regulator Motor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   MEASUREMENT CONDITION CHART



   Measurement Condition	Specified Condition
   Battery positive (+) → 2 Battery negative (-): 1 (3 seconds or more) → 1 and 10 (within 1 second) → 1 (within 1 second) → 1 and 10	Motor gear rotates clockwise (UP)
   Battery positive (+) → 2 Battery negative (-): 1 (3 seconds or more) → 1 and 7 (within 1 second) → 1 (within 1 second) → 1 and 7	Motor gear rotates counterclockwise (DOWN)

NG: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Driver Side) (See  REMOVAL   )

OK: REPLACE MASTER SWITCH ASSEMBLY (See  REMOVAL   )
