Windshield Glass: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL NO. 1 WINDSHIELD GLASS STOPPER
   1. Install 2 new stoppers to the vehicle body as shown in the illustration.
   Fig 1: Identifying No. 1 Windshield Glass Stopper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
   1. Apply Primer G to the glass where the stopper will be installed.
      NOTE:

      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
   2. Install 2 new stoppers onto the glass as shown in the illustration.

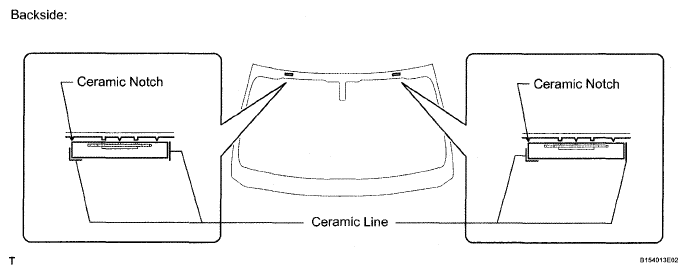

      Fig 2: Identifying No. 2 Windshield Glass Stopper

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL UPPER WINDSHIELD OUTSIDE MOULDING
   1. Using a brush or sponge, coat the contact surface of the glass and moulding with Primer G.
      NOTE:

      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the adhesive with Primer G.
      • Throw away any leftover primer.
   2. Apply adhesive to the moulding as shown in the illustration.

      Adhesive:

      Toyota Genuine Windshield Glass Adhesive or equivalent

      HINT:

      Use all adhesive within the time written in the table below.

      Fig 3: Applying Adhesive To Moulding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Usage timeframe

      TIMEFRAME CHART



      Temperature Usage	Timeframe
      35°C (95°F)	15 minutes
      20°C (68°F)	1 hour 40 minutes
      5°C (41 °F)	8 hours

   3. Install the windshield outside moulding, as shown in the illustration.
      Fig 4: Identifying Windshield Outside Moulding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove any unnecessary adhesive before it hardens.
      NOTE: Make sure that no adhesive remains on the moulding and glass.
