2007 Lexus IS 350FACTORY OEM SERVICE PROCEDURE
Engine Control Systems: Preparation: Differential: SST
DIFFERENTIAL - SST
| 09213-70011 | Crankshaft Pully Holding Tool | ||
| 09223-15030 | Oil Seal & Bearing Replacer | ||
| 09229-55010 | Oil Cooler Relief Valve Wrench | ||
| 09255-10012 | Crankshaft Rear Bearing Remover & Replacer | ||
| 09308-00010 | Oil Seal Puller | ||
| 09308-10010 | Oil Seal Puller | ||
| 09309-36010 | Transmission Rear Bearing Replacer | ||
| 09316-12010 | Transfer Bearing Replacer | ||
| 09316-60011 | Transmission & Transfer Bearing Replacer | ||
| (09316-00011) | Replacer Pipe | ||
| (09316-00031) | Replacer B | ||
| (09316-00041) | Replacer C | ||

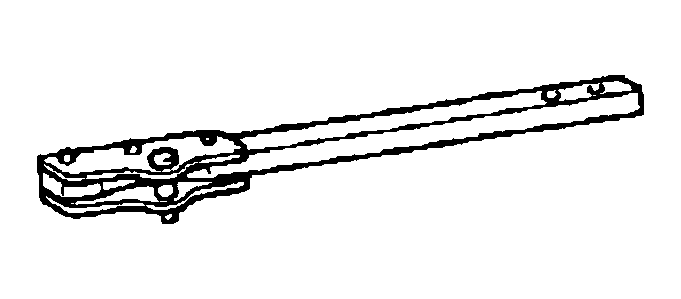

| 09330-00021 | Companion Flange Holding Tool | ||
| 09502-12010 | Differential Bearing Replacer | ||
| 09504-22011 | Differential Side Bearing Replacer | ||
| 09506-30012 | Differential Drive Pinion Rear Bearing Cone Replacer | ||
| 09554-22010 | Differential Oil Seal Replacer | ||
| 09556-22010 | Drive Pinion Front Bearing Remover | ||
| 09564-32011 | Differential Preload Adaptor | ||
| 09570-24011 | Differential Mounting Cushion Remover & Replacer | ||
| 09571-50010 | Differential Carrier Compressor | ||
| 09608-04031 | Front Hub Inner Bearing Cone Replacer | ||
| 09608-32010 | Steering Knuckle Oil Seal Replacer | ||
| 09612-10093 | Steering Gear Housing OveRHaul Tool Set | ||
| (09613-22011) | Steering Rack Shaft Bushing Puller | ||
| 09636-20010 | Upper Ball Joint Dust Cover Replacer | ||
| 09710-04081 | Base | ||
| 09710-04101 | Base | ||
| 09710-30012 | Rear Suspension Bushing Tool Set | ||
| 09930-00010 | Drive Shaft Nut Chisel | ||
| 09950-00020 | Bearing Remover | ||
| 09950-30012 | Puller A Set | ||
| (09951-03010) | Upper Plate | ||
| (09953-03010) | Center Bolt | ||
| (09954-03010) | Arm | ||
| (09955-03030) | Lower Plate 130 | ||
| (09955-03040) | Lower Plate 150 | ||
| (09956-03020) | Adapter 18 | ||
| (09956-03030) | Adaptor 20 | ||
| (09956-03060) | Adapter 26 | ||
| 09950-40011 | Puller B Set | ||
| (09951-04020) | Hanger 200 | ||
| (09952-04010) | Slide Arm | ||
| (09953-04030) | Center Bolt 200 | ||
| (09954-04010) | Arm 25 | ||
| (09955-04061) | Claw No.6 | ||
| (09957-04010) | Attachment | ||
| (09958-04011) | Holder | ||

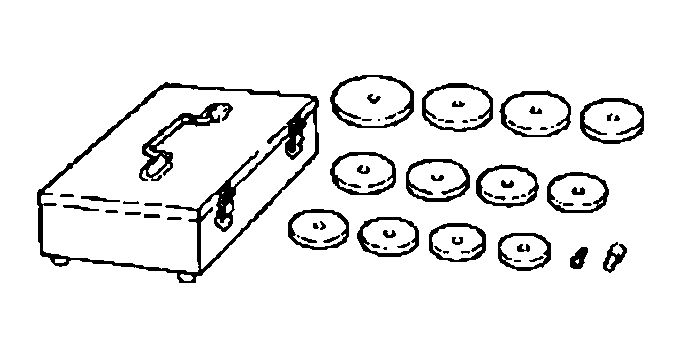

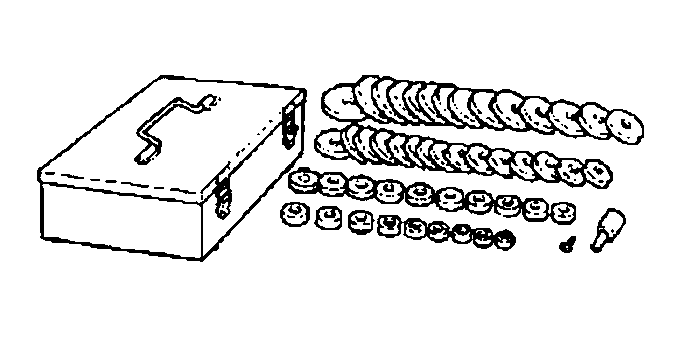

| 09950-60010 | Replacer Set | ||
| (09613-22011) | Steering Rack Shaft Bushing Puller | ||
| (09951-00300) | Replacer 30 | ||
| (09951-00330) | Replacer 33 | ||
| (09951-00350) | Replacer 35 | ||
| (09951-00380) | Replacer 38 | ||
| (09951-00390) | Replacer 39 | ||
| (09951-00410) | Replacer 41 | ||
| (09951-00430) | Replacer 43 | ||
| (09951-00440) | Replacer 44 | ||
| (09951-00480) | Replacer 48 | ||
| (09951-00510) | Replacer 51 | ||
| (09951-00540) | Replacer 54 | ||
| (09951-00550) | Replacer 55 | ||
| (09951-00560) | Replacer 56 | ||
| (09951-00570) | Replacer 57 | ||
| (09951-00580) | Replacer 58 | ||
| (09951-00590) | Replacer 59 | ||
| (09951-00620) | Replacer 62 | ||
| (09951-00640) | Replacer 64 | ||
| (09952-06010) | Adapter | ||
| 09950-60020 | Replacer Set No.2 | ||
| (09951-00600) | Replacer 60 | ||
| (09951-00710) | Replacer 71 | ||
| (09951-00720) | Replacer 72 | ||
| (09951-00730) | Replacer 73 | ||
| (09951-00790) | Replacer 79 | ||
| (09951-00810) | Replacer 81 | ||
| (09951-00890) | Replacer 89 | ||
| (09952-06010) | Adapter | ||
| 09950-70010 | Handle Set | ||
| (09951-07100) | Handle 100 | ||
| (09951-07150) | Handle 150 | ||
| (09951-07200) | Handle 200 |
