2007 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

Engine Control Systems: Preparation: Axle: SST

AXLE - SST

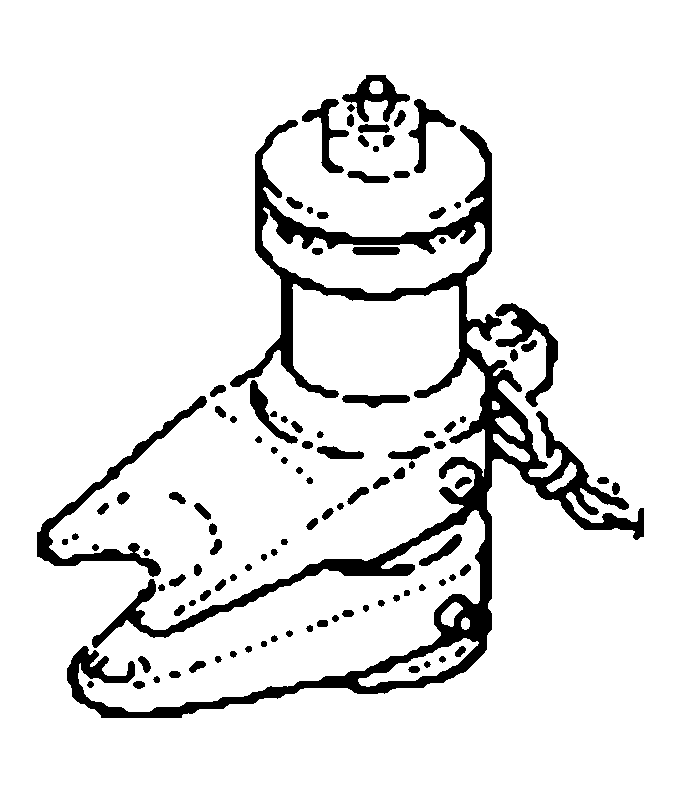

G04054353Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09628-00011 Ball Joint Puller Β

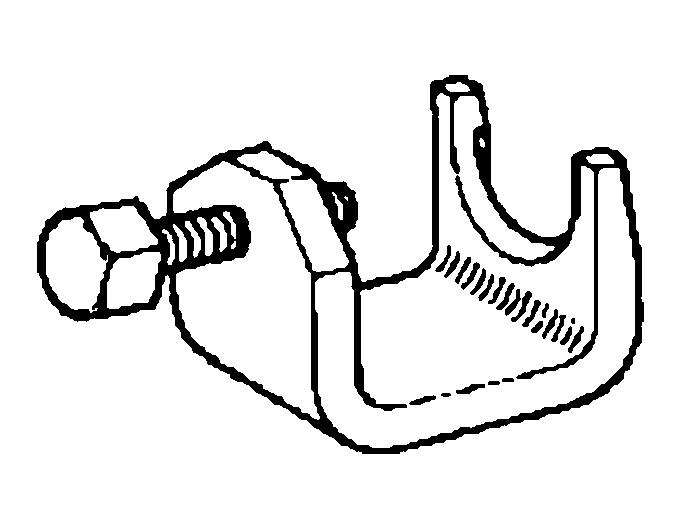

G04054354Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09628-10011 Ball Joint Puller Β

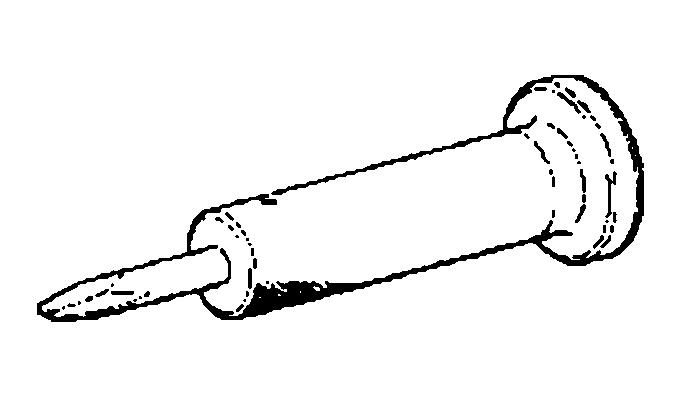

G04054355Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09930-00010 Drive Shaft Nut Chisel Β

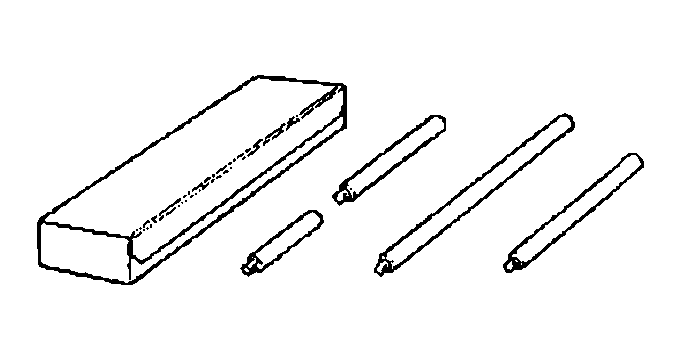

G04054356Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09950-70010 Handle Set Β

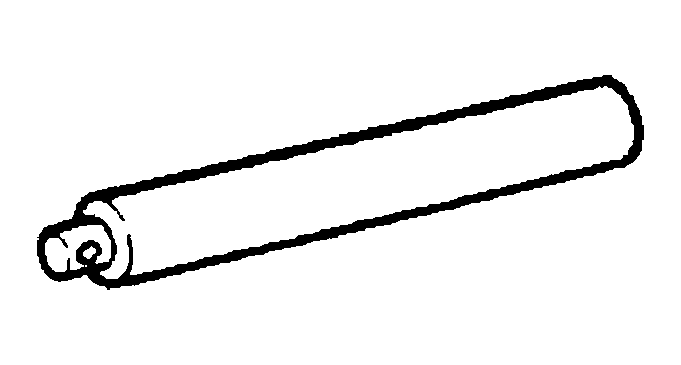

G04054357Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
(09951-07150) Handle 150 Β

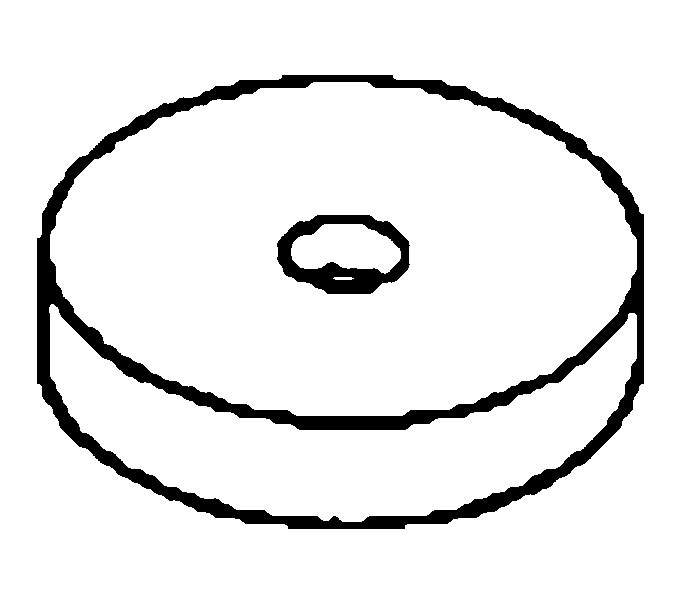

G04054358Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
09951-01000 Replacer 100 Β
