2007 Lexus IS 350FACTORY OEM SERVICE PROCEDURE
A760E Automatic Transmission: SST
A760E AUTOMATIC TRANSMISSION - SST

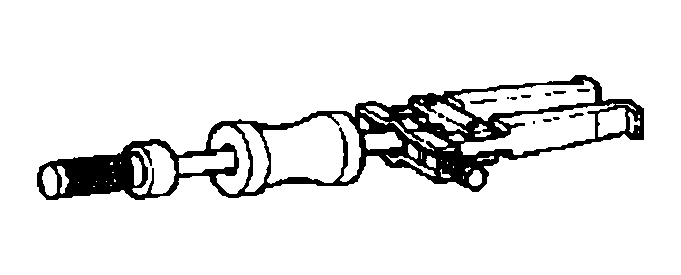

| 09308-00010 | Oil Seal Puller | ||

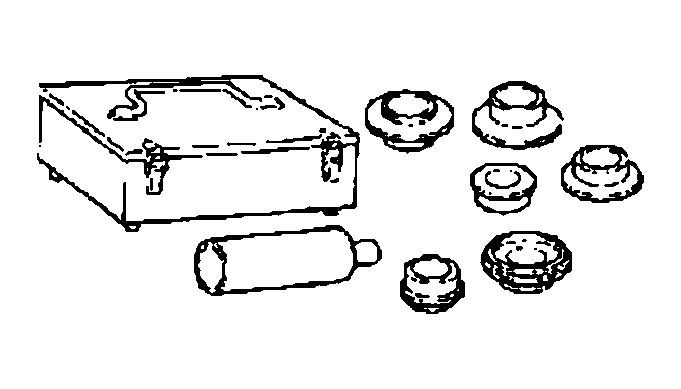

| 09316-60011 | Transmission & Transfer Bearing Replacer | ||

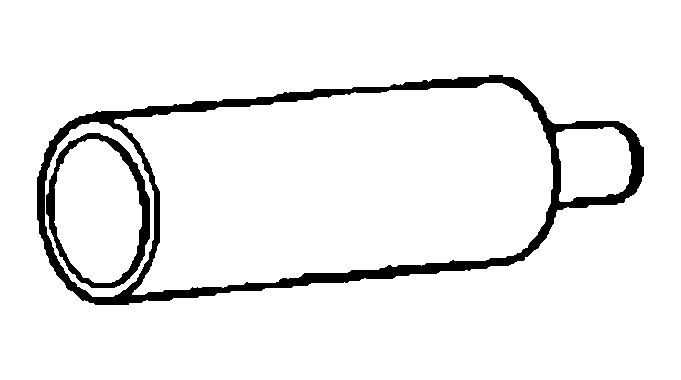

| (09316-00011) | Replacer Pipe | ||
| (09316-00051) | Replacer D | ||
| 09320-89010 | Transfer Clutch Spring Compressor | ||

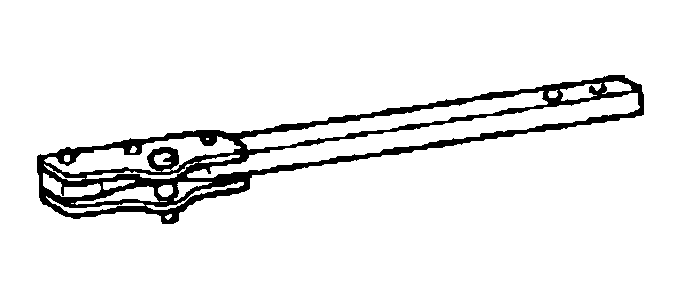

| 09330-00021 | Companion Flange Holding Tool | ||

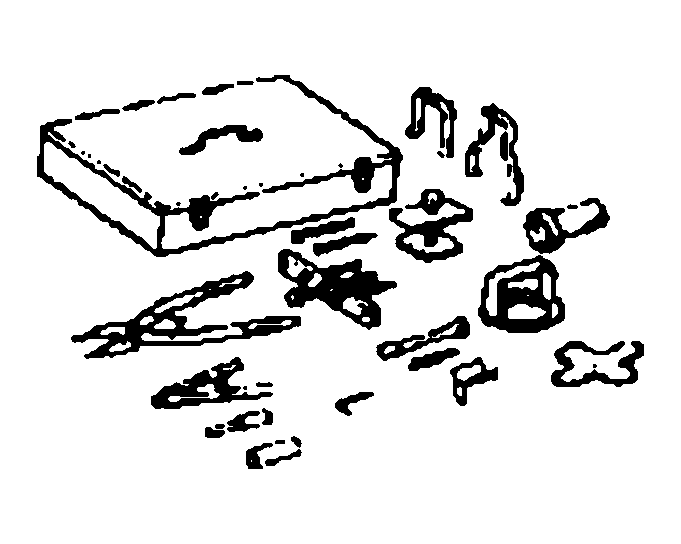

| 09350-30020 | TOYOTA Automatic Transmission Tool Set | ||
| (09350-06120) | No.2 Measure Terminal | ||
| (09350-07040) | No.2 Piston Spring Compressor | ||
| (09350-07050) | No.3 Piston Spring Compressor | ||
| (09350-07060) | No.1 Snap Ring Expander | ||
| (09350-07070) | No.2 Snap Ring Expander | ||
| (09350-07080) | Brake Reaction Sleeve Puller | ||
| (09350-07110) | Oil Seal Replacer | ||
| (09351-32010) | One-way Clutch Test Tool | ||
| (09351-32020) | Stator Stopper | ||
| (09351-32140) | Oil Seal Replacer | ||
| 09351-40010 | Tool Set, TOYOTA Automatic Transmission | ||
| (09351-04010) | Pipe | ||
| (09351-04020) | Spring Compressor No.1 | ||
| (09351-04030) | Spring Compressor No.2 | ||
| (09351-04040) | Plate | ||
| (09351-04050) | Bolt | ||
| (09351-04060) | Spring Compressor No.3 | ||
| (09351-04070) | Bolt Set | ||
| 09387-00050 | Under Drive Gear Puller | ||

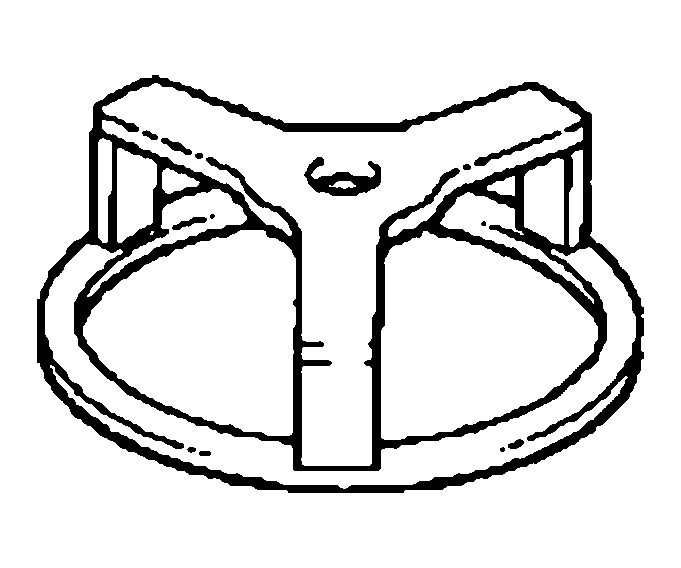

| 09387-00070 | First & Reverse Brake Wrench | ||
| 09517-36010 | Rear Axle Shaft Oil Seal Replacer | ||

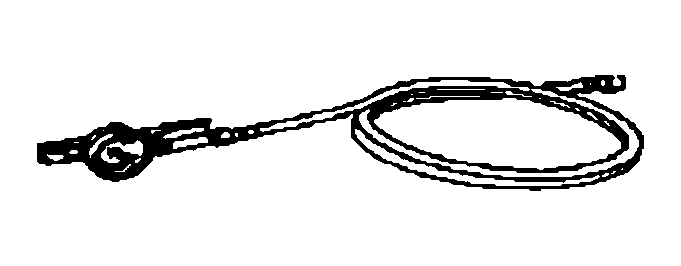

| 09843-18040 | Diagnosis Check Wire No.2 | ||
| 09930-00010 | Drive Shaft Nut Chisel | ||
| 09950-30012 | Puller A Set | ||
| (09955-03040) | Lower Plate 150 | ||
| 09950-60010 | Replacer Set | ||
| (09951-00350) | Replacer 35 | ||
| 09950-70010 | Handle Set | ||
| (09951-07100) | Handle 100 | ||

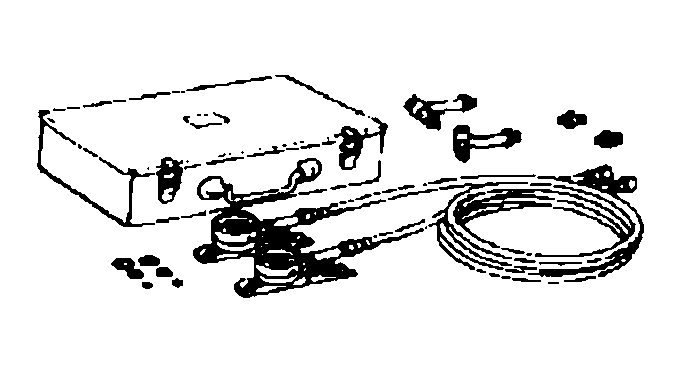

| 09992-00095 | Automatic Transmission Oil Pressure Gauge Set | ||
| (09992-00231) | Adaptor C | ||
| (09992-00271) | Gauge Assy |
