2007 Lexus IS 350FACTORY OEM SERVICE PROCEDURE
2GR-FSE Engine Mechanical: SST
2GR-FSE ENGINE MECHANICAL - SST

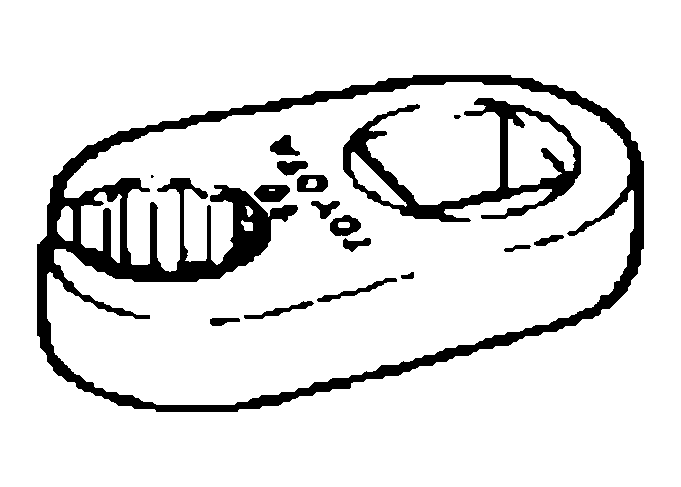

| 09023-38201 | Union Nut Wrench 12mm | ||

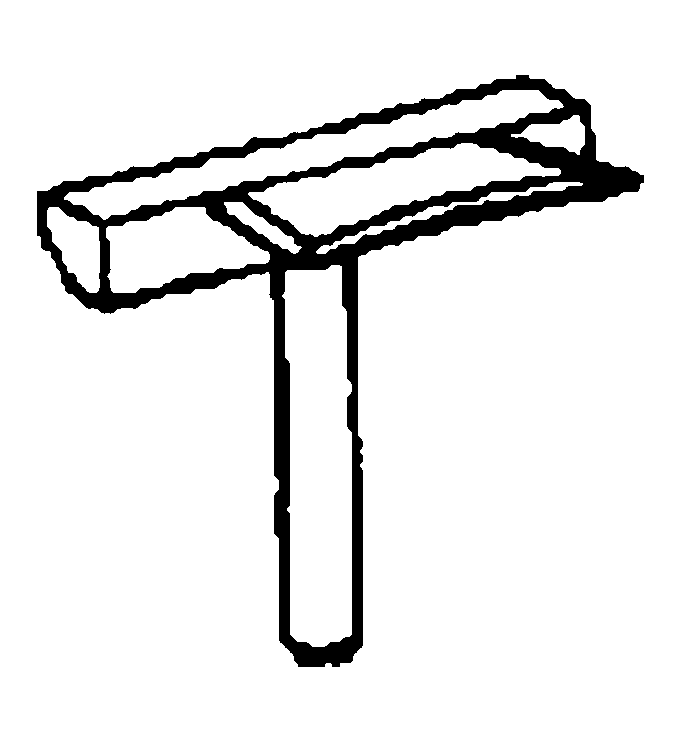

| 09032-00100 | Oil Pan Seal Cutter | ||

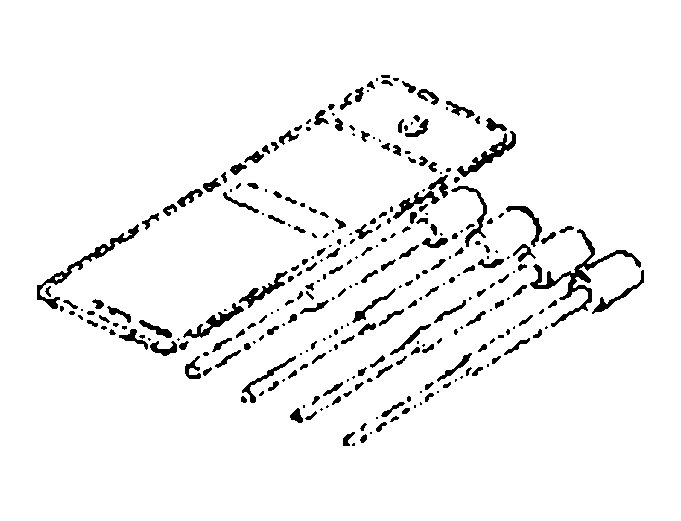

| 09201-10000 | Valve Guide Bushing Remover & Replacer Set | ||

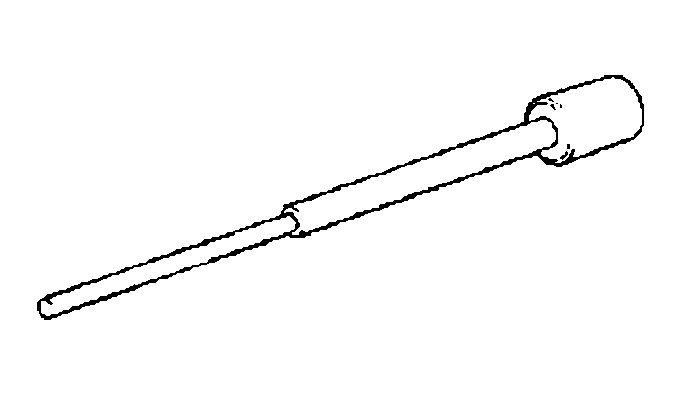

| (09201-01050) | Valve Guide Bushing Remover & Replacer 5 | ||

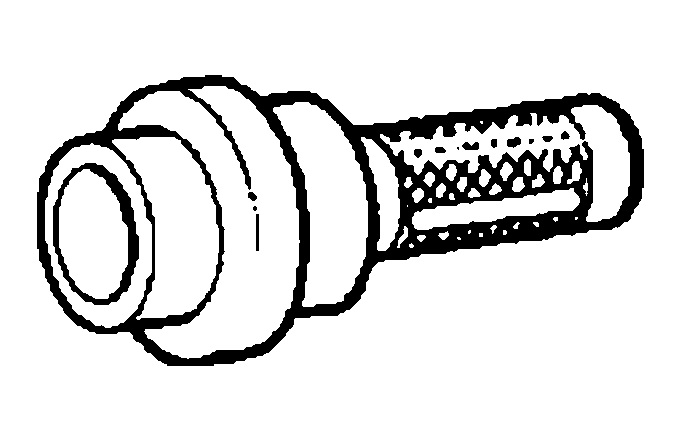

| 09201-41020 | Valve Stem Oil Seal Replacer | ||

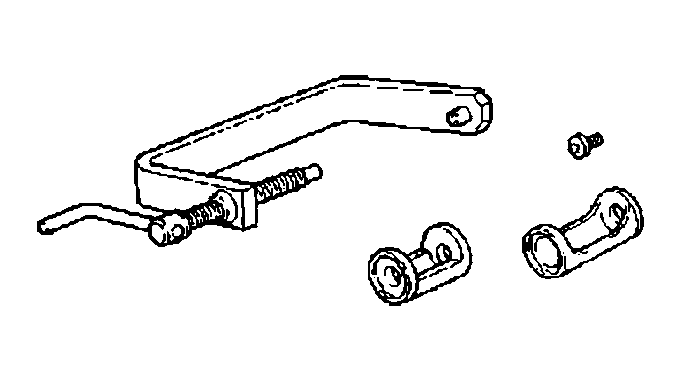

| 09202-70020 | Valve Spring Compressor | ||
| (09202-00010) | Attachment | ||
| 09213-70011 | Crankshaft Pulley Holding Tool | ||

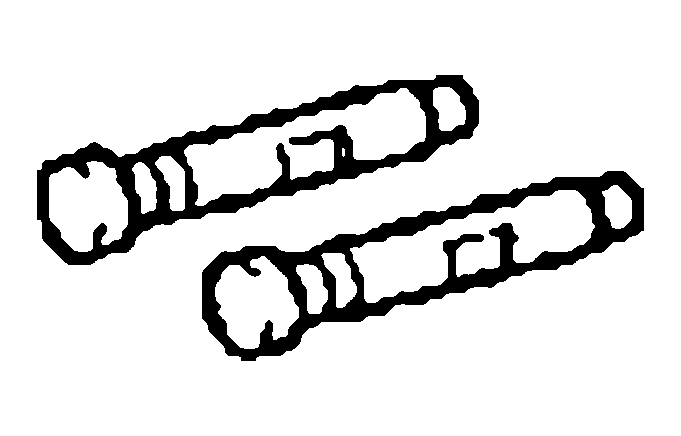

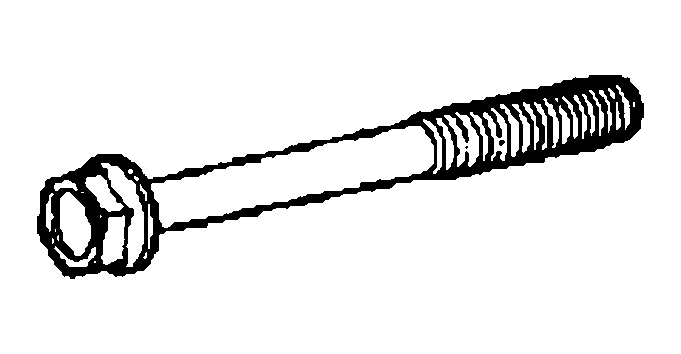

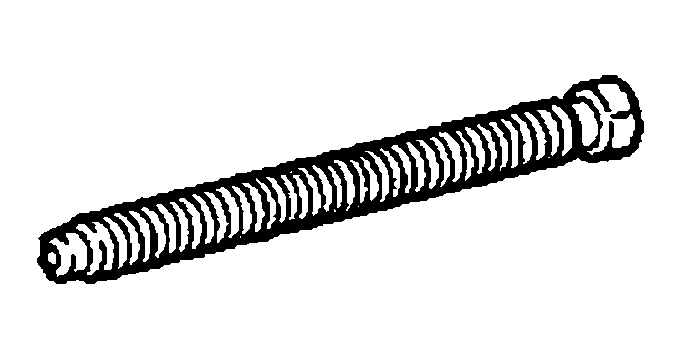

| (09213-70020) | Bolt | ||
| 09222-30010 | Connecting Rod Bushing Remover & Replacer | ||
| 09223-15030 | Oil Seal & Bearing Replacer | ||
| 09223-22010 | Crankshaft Front Oil Seal Replacer | ||

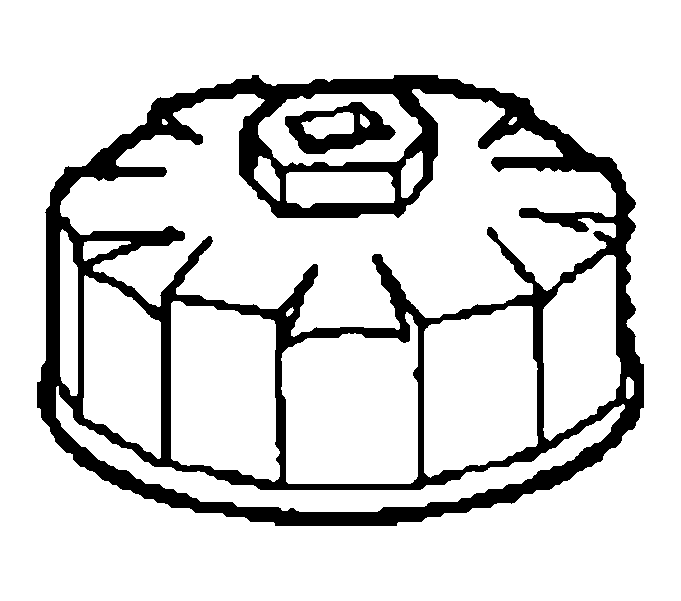

| 09228-06501 | Oil Filter Wrench | ||
| 09276-75010 | Valve Lifter Tool | ||

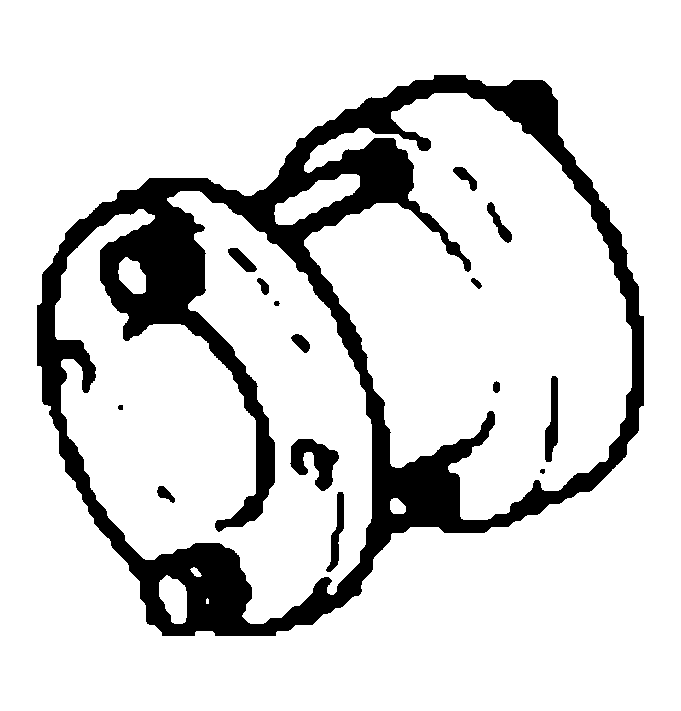

| 09330-00021 | Companion Flange Holding Tool | ||
| 09506-35010 | Differential Drive Pinion Rear Bearing Replacer | ||

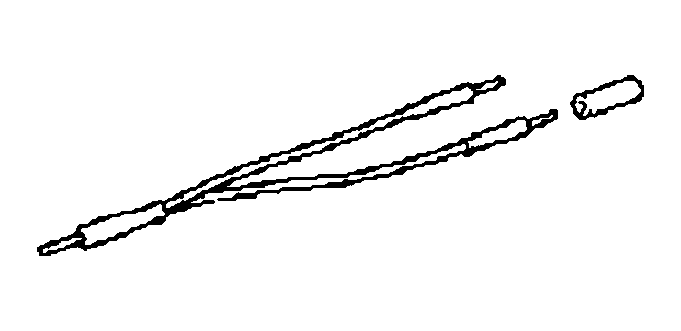

| 09843-18040 | Diagnosis Check Wire No.2 | ||
| 09950-50013 | Puller C Set | ||
| (09951-05010) | Hanger 150 | ||
| (09952-05010) | Slide Arm | ||
| (09953-05020) | Center Bolt 150 | ||
| (09954-05021) | Claw No.2 | ||

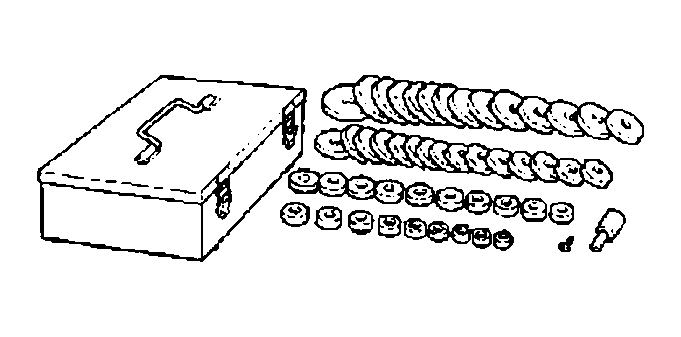

| 09950-60010 | Replacer Set | ||
| (09951-00200) | Replacer 20 | ||
| (09951-00340) | Replacer 34 | ||
| 09950-70010 | Handle Set | ||
| (09951-07100) | Handle 100 | ||
| (09951-07150) | Handle 150 |
