Inspection Procedure
- CHECK WIRE HARNESS (MPX SWITCH - BATTERY AND BODY GROUND)

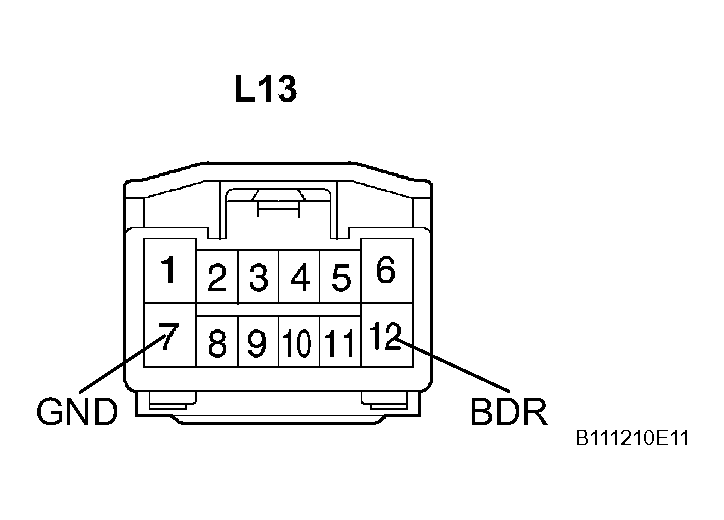

- Disconnect the L13 connector.
- Measure the voltage and resistance according to the value(s) in MPX SWITCH - BATTERY AND BODY GROUND (VOLTAGE) and MPX SWITCH - BATTERY AND BODY GROUND (RESISTANCE) .
Voltage
MPX SWITCH - BATTERY AND BODY GROUND (VOLTAGE)Tester Connection Condition Specified Condition L13-12 (BDR)-Body ground Always 10 to 14 V Resistance
MPX SWITCH - BATTERY AND BODY GROUND (RESISTANCE)Tester Connection Condition Specified Condition L13-7 (GND) - Body ground Always Below 1 ohms Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
