2007 Lexus IS 250 AWDFACTORY OEM SERVICE PROCEDURE
UF1AE Transfer: SST
SPECIAL SERVICE TOOLS DESCRIPTION (UF1AE TRANSFER)
| 09032-00100 | Oil Pan Seal Cutter | - | |
| 09213-54015 | Crankshaft Pulley Holding Tool | - | |
| 09308-00010 | Oil Seal Puller | - | |
| 09316-20011 | Transfer Bearing Replacer | - | |
| 09316-60011 | Transmission & Transfer Bearing Replacer | - | |
| (09316-00011) | Replacer Pipe | - | |
| (09316-00041) | Replacer C | - | |
| (09316-00071) | Replacer F | - | |
| 09325-40010 | Transmission Oil Plug | - | |

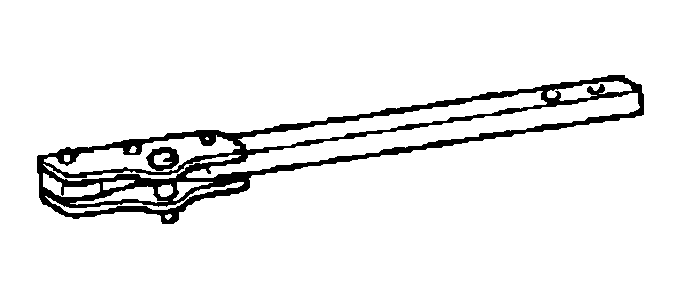

| 09330-00021 | Companion Flange Holding Tool | - | |

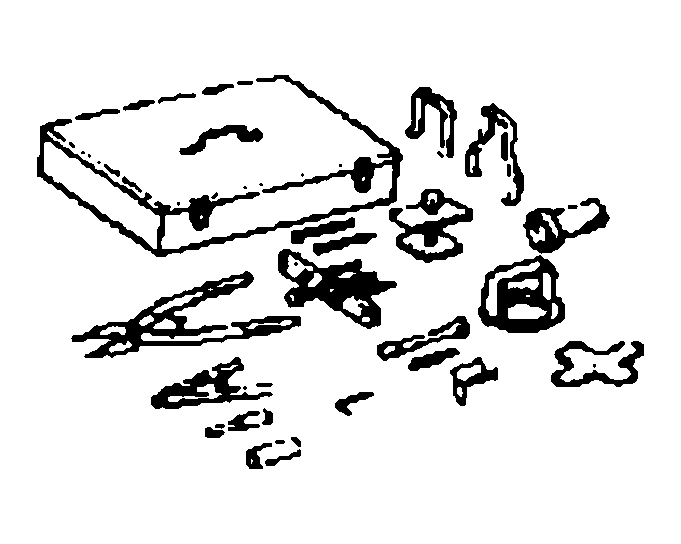

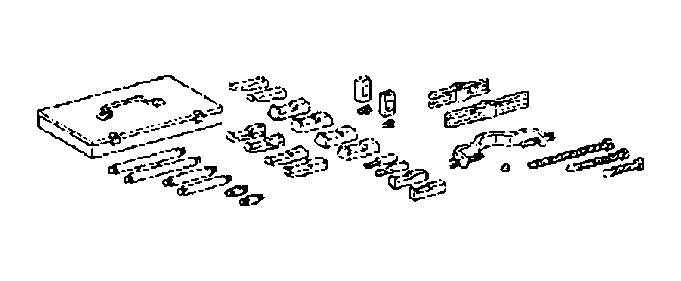

| 09350-30020 | TOYOTA Automatic Transmission Tool Set | - | |
| (09350-07040) | No.2 Piston Spring Compressor | - | |

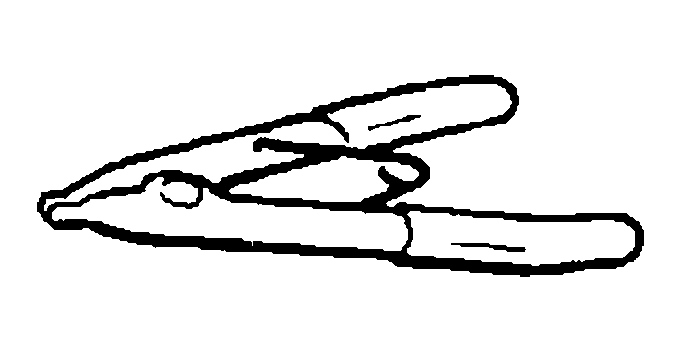

| (09350-07070) | No.2 Snap Ring Expander | - | |

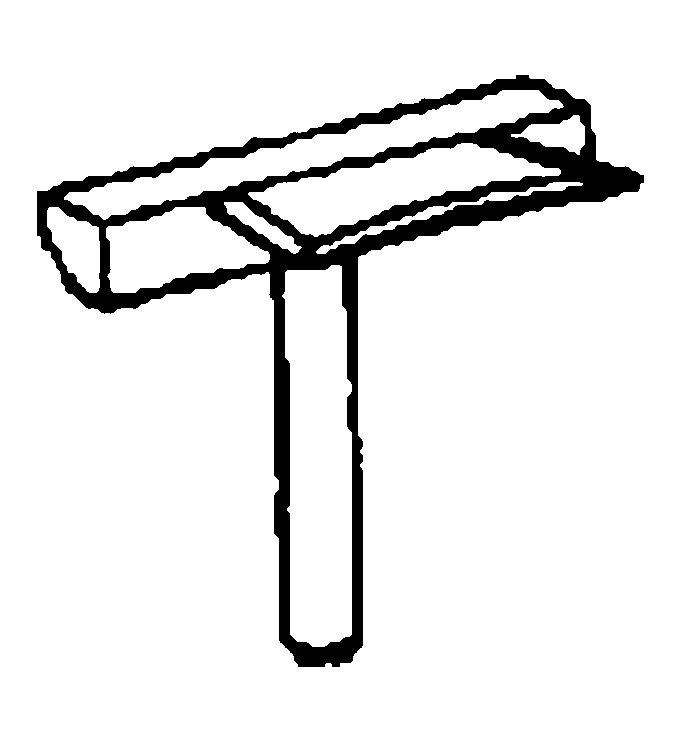

| 09930-00010 | Drive Shaft Nut Chisel | - | |

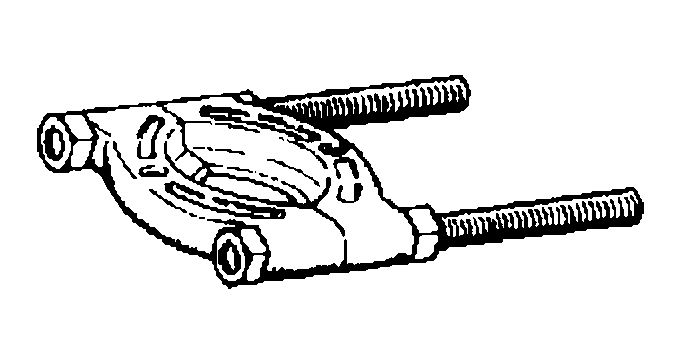

| 09950-00020 | Bearing Remover | - | |
| 09950-40011 | Puller B Set | - | |
| (09951-04010) | Hanger 150 | - | |
| (09952-04010) | Slide Arm | - | |

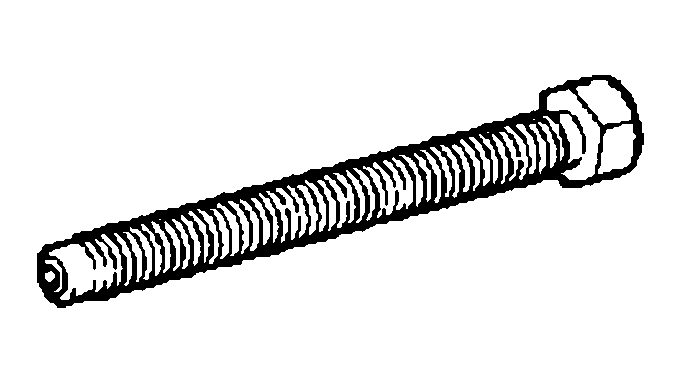

| (09953-04020) | Center Bolt 150 | - | |
| (09954-04010) | Arm 25 | - | |
| (09955-04051) | Claw No.5 | - | |
| (09958-04011) | Holder | - | |

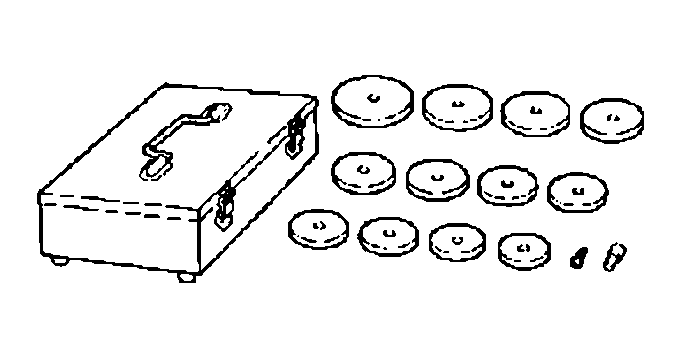

| 09950-60010 | Replacer Set | - | |
| (09951-00480) | Replacer 48 | - | |
| (09951-00530) | Replacer 53 | - | |
| (09951-00550) | Replacer 55 | - | |
| (09951-00640) | Replacer 64 | - | |
| 09950-60020 | Replacer Set No.2 | - | |
| (09951-00890) | Replacer 89 | - | |
| (09951-00910) | Replacer 91 | - | |

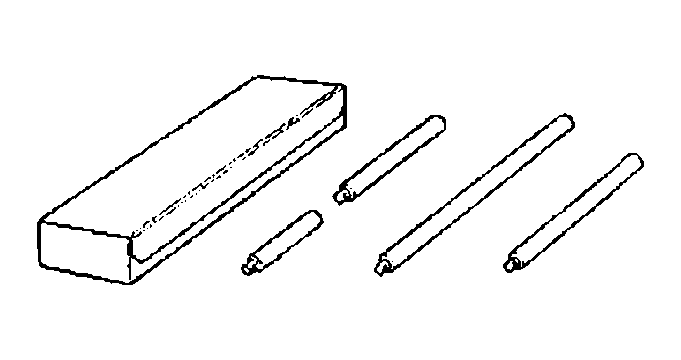

| 09950-70010 | Handle Set | - | |
| (09951-07100) | Handle 100 | - | |
| (09951-07150) | Handle 150 | - |
