2007 Lexus IS 250 AWDFACTORY OEM SERVICE PROCEDURE
RA62 Manual Transmission: SST
SPECIAL SERVICE TOOLS DESCRIPTION (RA62 MANUAL TRANSMISSION)

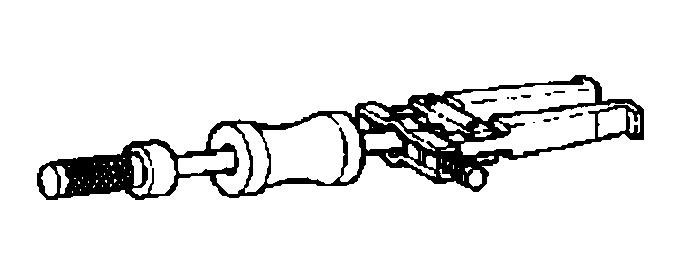

| 09308-00010 | Oil Seal Puller | - | |
| 09308-14010 | Replacer Pipe A | - | |
| 09309-37010 | Transmission Bearing Replacer | - | |
| 09325-20010 | Transmission Oil Plug | - | |
| 09556-16030 | Differential Drive Pinion Holding Tool 28 | - | |
| 09608-06041 | Front Hub Inner Bearing Cone Replacer | - | |

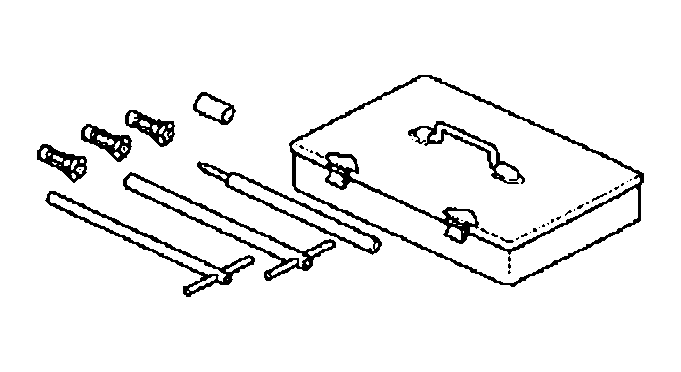

| 09612-70100 | Power Steering Oil Seal Remover Set | - | |
| (09612-07210) | Collet Setting Pipe No.1 | - | |
| 09710-20011 | Front Suspension Bushing Tool Set | - | |
| (09710-06061) | Spacer | - | |
| 09817-16011 | Back-up Light Switch Tool | - | |

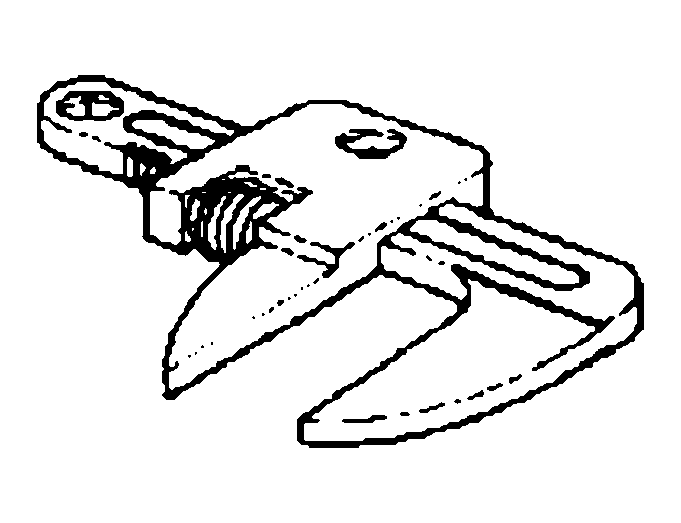

| 09922-10010 | Variable Open Wrench | - | |

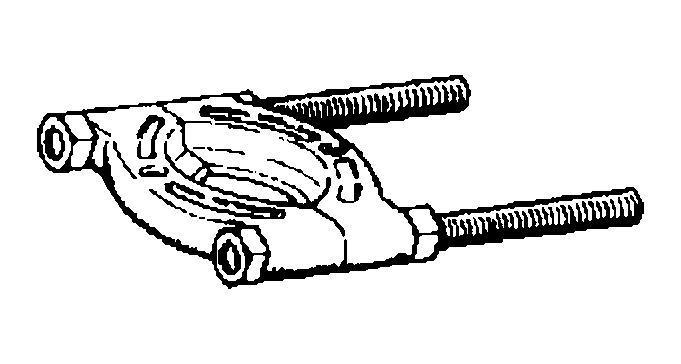

| 09950-00020 | Bearing Remover | - | |

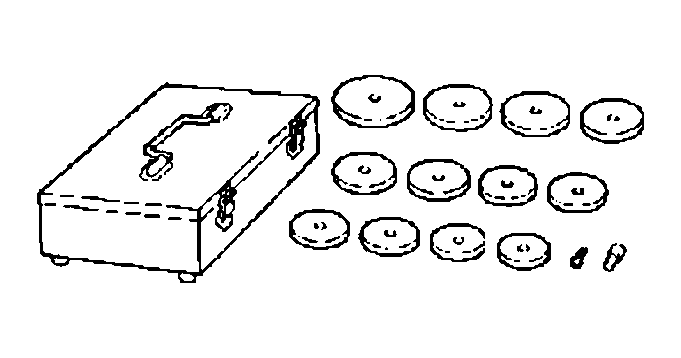

| 09950-60010 | Replacer Set | - | |
| (09951-00230) | Replacer 23 | - | |
| (09951-00300) | Replacer 30 | - | |
| (09951-00320) | Replacer 32 | - | |
| (09951-00470) | Replacer 47 | - | |
| (09951-00540) | Replacer 54 | - | |
| (09951-00650) | Replacer 65 | - | |
| 09950-60020 | Replacer Set No.2 | - | |
| (09951-00640) | Replacer 64 | - | |
| (09951-00790) | Replacer 79 | - | |

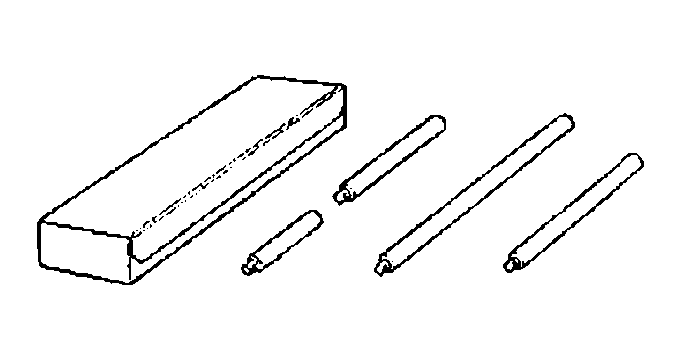

| 09950-70010 | Handle Set | - | |
| (09951-07100) | Handle 100 | - | |
| (09951-07200) | Handle 200 | - | |
| (09951-07360) | Handle 360 | - |
