2007 Lexus IS 250 AWDFACTORY OEM SERVICE PROCEDURE
4GR-FSE Engine Mechanical: SST
SPECIAL SERVICE TOOLS DESCRIPTION (4GR-FSE ENGINE MECHANICAL)

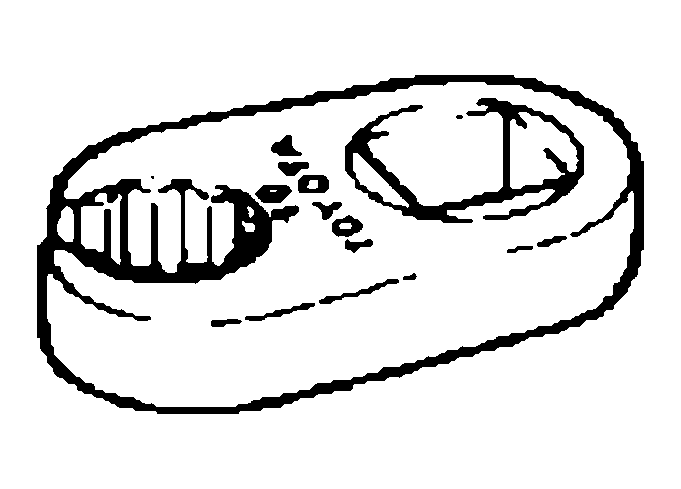

| 09023-38201 | Union Nut Wrench 12 mm | - | |
| 09032-00100 | Oil Pan Seal Cutter | - | |

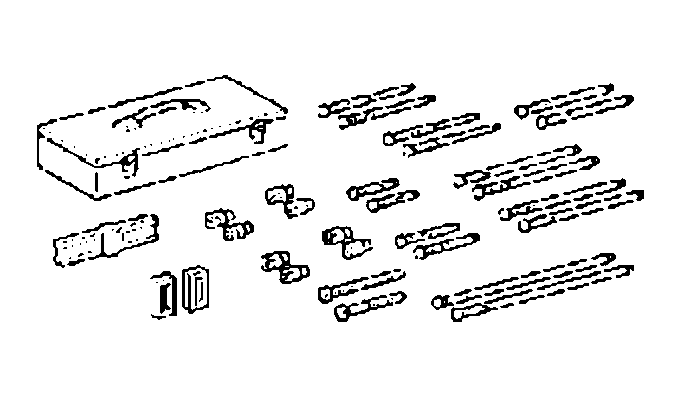

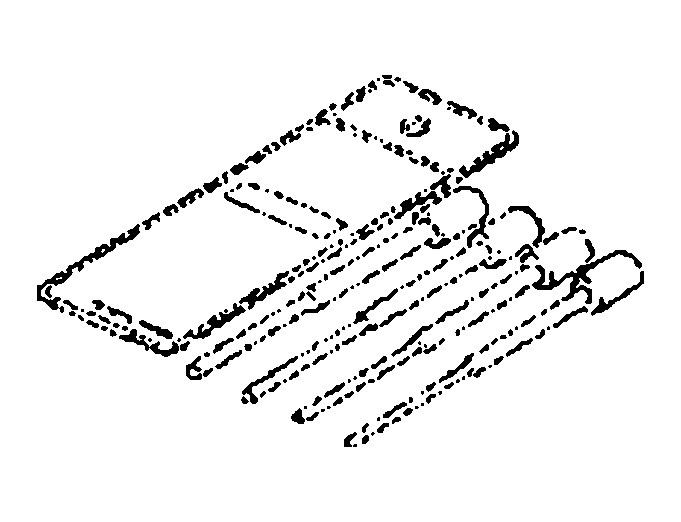

| 09201-10000 | Valve Guide Bushing Remover & Replacer Set | - | |
| (09201-01050) | Valve Guide Bushing Remover & Replacer 5 | - | |
| 09201-41020 | Valve Stem Oil Seal Replacer | - | |

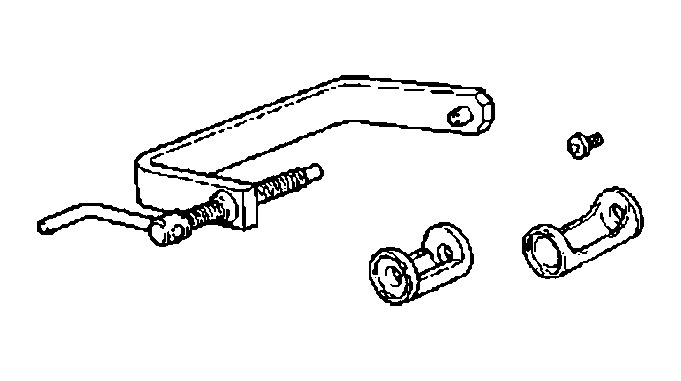

| 09202-70020 | Valve Spring Compressor | - | |

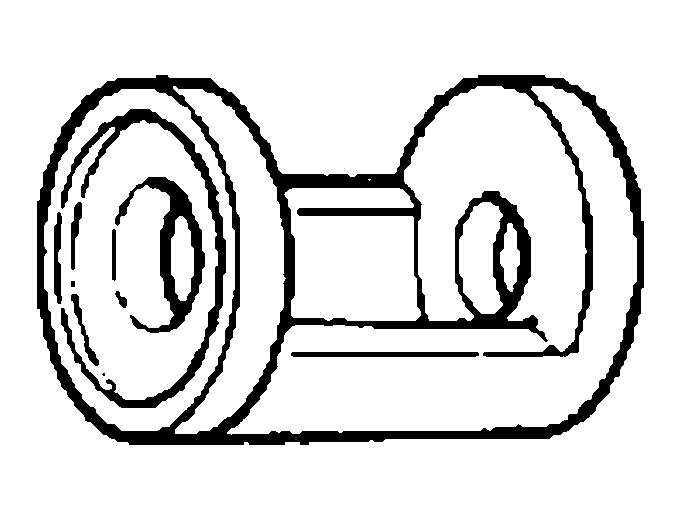

| (09202-00010) | Attachment | - | |
| 09213-70011 | Crankshaft Pulley Holding Tool | - | |

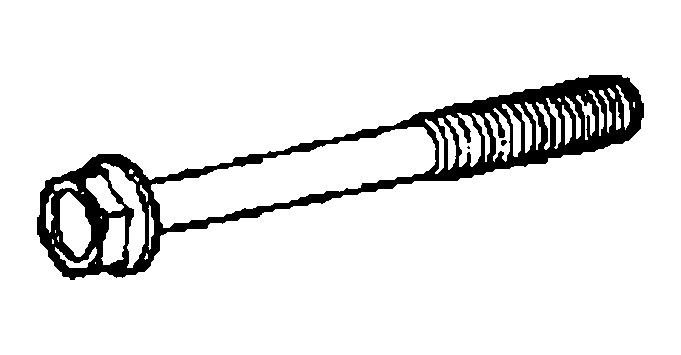

| (09213-70020) | Bolt | - | |
| 09222-30010 | Connecting Rod Bushing Remover & Replacer | - | |
| 09223-15030 | Oil Seal & Bearing Replacer | - | |
| 09223-22010 | Crankshaft Front Oil Seal Replacer | - | |

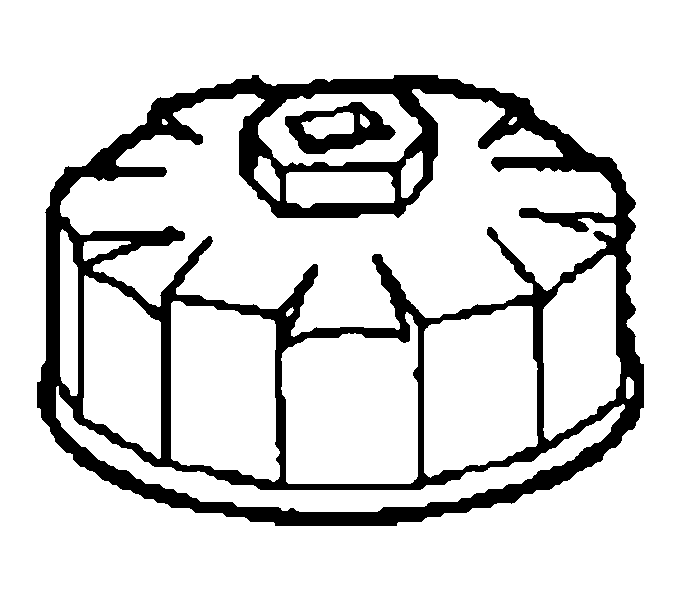

| 09228-06501 | Oil Filter Wrench | - | |
| 09276-75010 | Valve Lifter Tool | - | |
| 09330-00021 | Companion Flange Holding Tool | - | |
| 09506-35010 | Differential Drive Pinion Rear Bearing Replacer | - | |

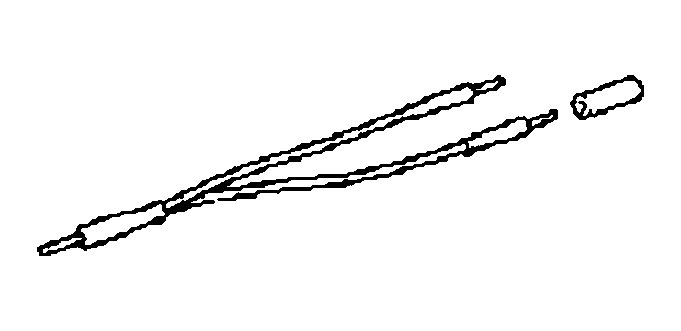

| 09843-18040 | Diagnosis Check Wire No.2 | - | |
| 09950-50013 | Puller C Set | - | |
| (09951-05010) | Hanger 150 | - | |
| (09952-05010) | Slide Arm | - | |
| (09953-05020) | Center Bolt 150 | - | |
| (09954-05021) | Claw No.2 | - | |

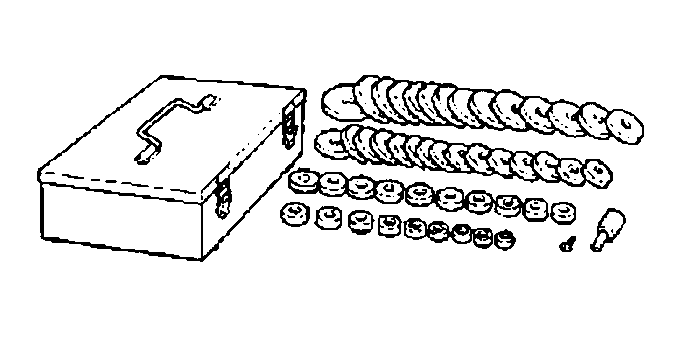

| 09950-60010 | Replacer Set | - | |
| (09951-00200) | Replacer 20 | - | |
| (09951-00340) | Replacer 34 | - | |
| 09950-70010 | Handle Set | - | |
| (09951-07100) | Handle 100 | - | |
| (09951-07150) | Handle 150 | - |
