2007 Lexus GX 470FACTORY OEM SERVICE PROCEDURE

Transmission Control Cable: Installation

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    Fig 1: Identifying Nut & Clip
    G05261372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the transmission control cable assembly with the nut and clip from the transmission control cable bracket.
    2. Pull in the transmission control cable assembly to the body.
      3. Fig 2: Identifying Transmission Control Cable Assembly
      G05261363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the transmission control cable assembly with the nut clip, from the floor shift lever assembly.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      NOTE:
      • Protrusion facing upward.
      • When the nut is remove, be sure to tighten the nut.

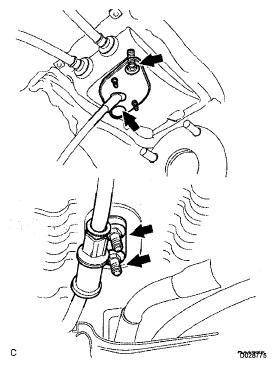

      4. Fig 3: Identifying Transmission Control Cable Assembly Nuts
      G05261407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the transmission control cable assembly with the 4 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 40 in.*lbf)

  2. INSTALL UPPER CONSOLE PANEL ASSEMBLY
  3. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
  4. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
  5. INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSEMBLY
  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  7. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT   )
  8. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
