Speed Sensor: Inspection

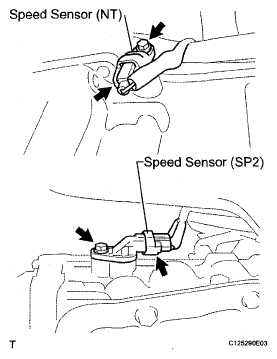

- INSPECT SPEED SENSOR (NT SENSOR)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the speed sensor connector from the transmission.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Specified Condition 20°C (68°F) 1 - 2 560 to 680 Ω - INSPECT SPEED SENSOR (SP2 SENSOR)
- Disconnect the speed sensor connector from the transmission.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Specified Condition 20°C (68°F) 1 - 2 560 to 680 Ω
