Shift Lever Assembly: Reassembly
- INSTALL NO. 1 SHIFT LEVER INSERT
- Install the No. 1 shift lever insert to the floor shift assembly.
- INSTALL FLOOR SHIFT LEVER PIN
- Apply MP grease to the No. 2 detent rod and spring.
- Install the No. 2 detent rod and spring on the control shift lever.
- Apply MP grease to the floor shift lever pin.

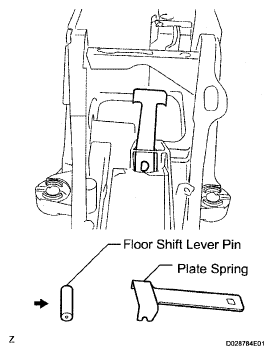

- Install the floor shift lever pin on the plate spring.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL SHIFTING LEVER LINK
- Apply MP grease to the shift lever link and torsion spring.
- Install the shift lever link and torsion spring on the shift lock control ECU sub-assembly.
- INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Install the sift lock control ECU sub-assembly with the 2 screws.
- INSTALL SHIFT LEVER GUIDE HOUSING
- Install the shift lever guide housing with the shift lever lock pin and a new No. 1 shift lever nut.
