Shift Lever Assembly: Disassembly

  1. REMOVE SHIFT LEVER GUIDE HOUSING

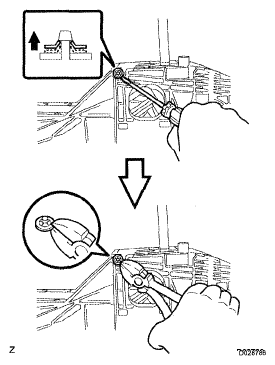

      Fig 1: Prying Up No. 1 Shift Lever Nut Using Screwdriver
      G05261347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, pry up the No. 1 shift lever nut.
      2. Fig 2: Prying Up Floor Shift Lever Lock Pin Using Screwdriver
      G05261348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pry up the floor shift lever lock pin.
    3. Remove the shift liver guide housing.
  2. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
    Fig 3: Identifying Shift Lock Control ECU Sub-Assembly Screws
    G05261349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and shift lock control ECU sub-assembly.
  3. REMOVE SHIFTING LEVER LINK
    Fig 4: Identifying Shift Lever Link & Torsion Spring
    G05261350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the shift lever link and torsion spring from the shift lock control ECU sub-assembly.
  4. REMOVE FLOOR SHIFT LEVER PIN
    Fig 5: Identifying No. 2 Detent Rod & Spring
    G05261351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 2 detent rod and spring from control shift lever.
      2. Fig 6: Identifying Plate Spring & Floor Shift Lever Pin

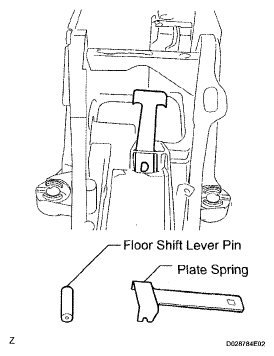

      G05261352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the plate spring and floor shift lever pin from the shift lever plate sub-assembly.
  5. REMOVE NO. 1 SHIFT LEVER INSERT
    Fig 7: Identifying No. 1 Shift Liver Insert
    G05261353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 shift liver insert from the floor shift assembly.
