2007 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Automatic Transmission Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE ENGINE UNDER COVER
  3. REMOVE ENGINE UNDER COVER NO.2
  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (See INSTALLATION )

  5. REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSEMBLY
    1. Remove the 2 bolts and exhaust pipe No.1 support bracket sub-assembly.
    Fig 1: Identifying Exhaust Pipe Support Bracket Bolts
    G05286679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY

    (See REMOVAL )

  7. DRAIN AUTOMATIC TRANSMISSION FLUID (See  REMOVAL  )
  8. REMOVE ENGINE UNDER COVER AIR GUIDE BRACKET (See  REMOVAL  )
  9. SEPARATE OIL COOLER INLET TUBE NO.1
    1. Remove the 2 bolts and 2 clamps.

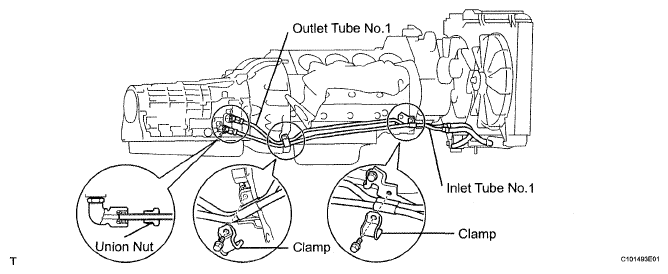

      Fig 2: Identifying Oil Cooler Inlet Tube Clamp And Union Nut
      G05295429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the union nut and separate the oil cooler inlet tube No.1.
    Fig 3: Locating Oil Cooler Inlet Tube Union Nut
    G05289797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE OIL COOLER OUTLET TUBE NO.1
    1. Loosen the union nut and separate the oil cooler outlet tube No.1.
    Fig 4: Locating Oil Cooler Outlet Tube Union Nut
    G05289798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Remove the nut and separate the floor shift gear shifting rod.
    Fig 5: Locating Floor Shift Gear Shifting Rod Nut
    G05286607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY
    1. Support the automatic transmission with a transmission jack.
    Fig 6: Supporting Automatic Transmission With Transmission Jack
    G05289800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE ENGINE REAR MOUNTING MEMBER
    1. Remove the 4 bolts and separate the engine rear mounting member.
      Fig 7: Locating Engine Rear Mounting Member Bolts
      G05286617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and engine rear mounting member.
    Fig 8: Locating Engine Rear Mounting Member Nuts
    G05295435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT WIRE HARNESS AND CONNECTORS
    1. Tilt down the automatic transmission.
      NOTE: Take care so that the cooling fan does not come into contact with the fan shroud.
