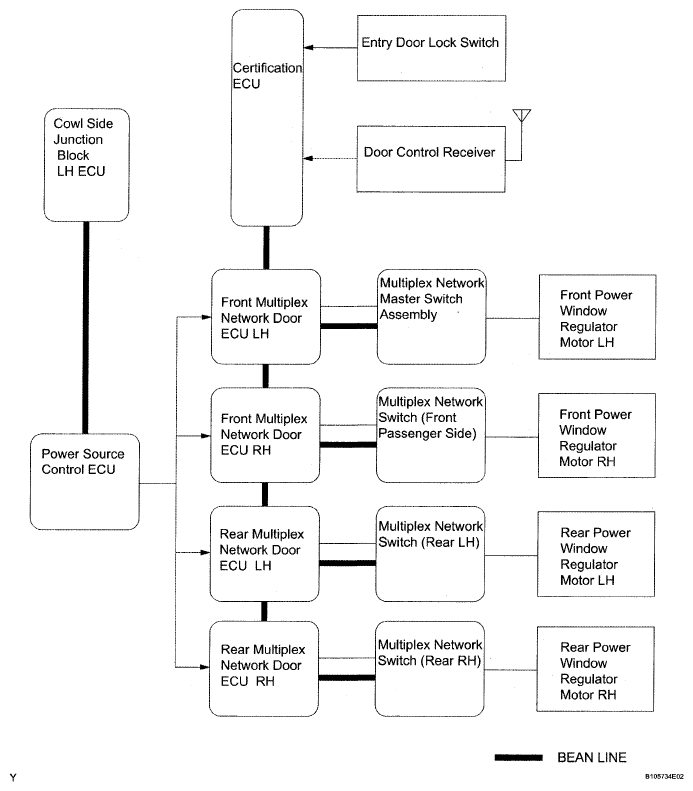

Fig 1: Power Window Control System - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Multiplex Network Master Switch Assembly	Front Multiplex Network Door ECU RH (Front Passenger Side Door ECU)	Remote control signal Key-off operation signal	BEAN
Multiplex Network Master Switch Assembly	Rear Multiplex Network Door ECU RH (Rear Door RH ECU)	Remote control signal Key-off operation signal	BEAN
Multiplex Network Master Switch Assembly	Rear Multiplex Network Door ECU LH (Rear Door LH ECU)	Remote control signal Key-off operation signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Switch Assembly (Front Passenger Side)	Window lock switch signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Switch Assembly (Rear LH)	Window lock switch signal	BEAN
Multiplex Network Master Switch Assembly	Multiplex Network Switch Assembly (Rear RH)	Window lock switch signal	BEAN
Front Multiplex Network Door ECU LH (Driver Side Door ECU)	Multiplex Network Master Switch Assembly	Door key-linked power window control signal	BEAN
Multiplex Network Body ECU (Cowl Side Junction Block ECU RH)	Multiplex Network Master Switch Assembly	Driver door courtesy light switch signal Engine switch status signal	BEAN
Power Source Control ECU	Multiplex Network Master Switch Assembly	Engine switch status signal	BEAN
Certification ECU	Multiplex Network Master Switch Assembly	Wireless transmitter-linked power window control signal	BEAN
