2007 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Back Window Glass: Installation

INSTALL NO. 2 WINDSHIELD GLASS STOPPER

Apply Primer G to the glass where the spacers will be installed.
NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

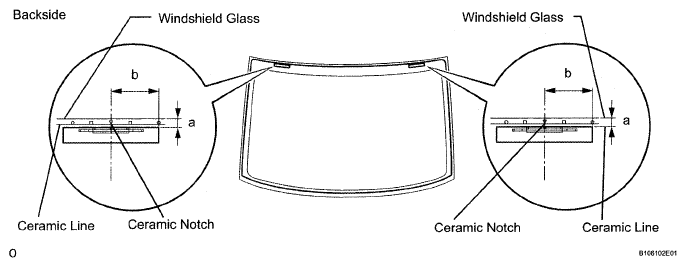

Install 2 new stoppers onto the glass as shown in the illustration.

Fig 1: Identifying Stoppers Onto Glass

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Specification

AREA MEASUREMENT CHART

Area	Measurement
a	13.0 mm (0.512 in.)
b	40.0 mm (1.575 in.)

INSTALL NO. 1 WINDSHIELD GLASS STOPPER
1. Install 2 new stoppers to the vehicle body as shown in the illustration.
INSTALL BACK WINDOW GLASS DAM
1. Apply Primer G to the glass where the dams will be installed.
  NOTE:
  - Allow the primer to dry for 3 minutes or more.
  - Throw away any leftover primer.
  - Do not apply too much primer.
