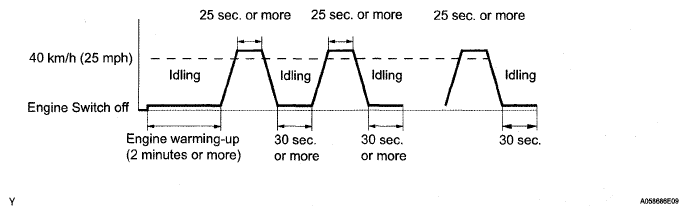

Confirmation Driving Pattern
- Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
- Switch the intelligent tester from normal mode to check mode (see CHECK MODE PROCEDURE ).
- Allow the engine to idle until the ECT reaches 75°C (167°F). *1
- Allow the vehicle to run at 40 km/h (25 mph) or more for 25 seconds or more. *2
- Allow the engine to idle for 30 seconds. *3
- Perform the 2 previous steps at least 3 times. *4
HINT:
If a malfunction exists, the MIL will be illuminated on the multi-information display.
- Allow the engine to idle for 30 seconds.
If you do not have the intelligent tester, turn the engine switch off after performing steps *1 to *4, then perform steps *1 to *4 again.
