ATF Temperature Sensor: Inspection

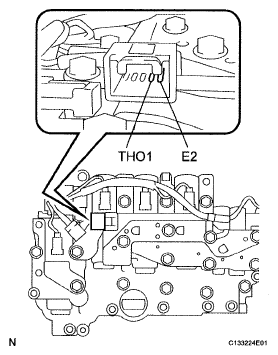

- INSPECT ATF TEMPERATURE SENSOR ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Specified Condition E2 - THO1 90 Ω to 156 kΩ E2 - Body ground 10 kΩ or higher THO1 - Body ground 10 kΩ or higher HINT:
If the resistance is out of the specified range with the ATF temperature shown in the table below, the driveability of the vehicle may decrease.
Standard resistance
ATF TEMPERATUREATF Temperature Specified Condition 10°C (50°F) 5.8 to 7.1 kΩ 110°C (230°F) 0.22 to 0.28 kΩ If the result is not specified, replace the ATF temperature sensor assembly.
- Measure the resistance according to the value(s) in the table below.
