2007 Lexus ES 350FACTORY OEM SERVICE PROCEDURE

Fuel Pump: Installation

  1. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
    1. Install a new gasket to the fuel suction tube.
    2. Install the fuel suction tube.
      NOTE:
      • Do not damage the fuel pump filter.
      • Be careful that the arm of the sender gauge does not bend.
        Fig 1: Identifying Fuel Suction Tube
        G04975037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL TANK VENT TUBE SET PLATE
    1. Align the mark of the set plate with the fuel suction tube.
    2. Install the set plate with the 8 bolts.

      Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

      Fig 2: Locating Set Plate Bolts
      G04974947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT FUEL PUMP TUBE SUB-ASSEMBLY
    1. Install the fuel pump tube with the tube joint clip.
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the fuel tube joint is inserted securely.
      • Check that the tube joint clip is correctly located on the collar of the fuel tube joint.
      • After installing the tube joint clip, check that the fuel tube joint is pulled out of position.
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. CHECK FOR FUEL LEAKS (See  ON-VEHICLE INSPECTION   )

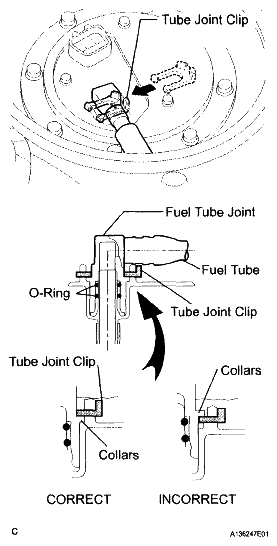

    Fig 3: Installing Fuel Pump Tube With Tube Joint Clip
    G04975057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR FLOOR SERVICE HOLE COVER
    1. Connect the fuel pump connector.
    2. Install the rear floor service hole cover with new butyl tape.
  7. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  8. PERFORM INITIALIZATION
    1. Perform initialization procedures (See INITIALIZATION )

      HINT:

      Some systems need initialization after reconnecting the cable to the negative battery terminal.

      Fig 4: Locating Fuel Pump Connector And Rear Floor Service Hole Cover
      G04974917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
