Speed Sensor: Replacement
- REMOVE O/D DIRECT CLUTCH SPEED SENSOR
- Disconnect the sensor connector.
- Remove the bolt and sensor.
- Remove the O-ring from the sensor.

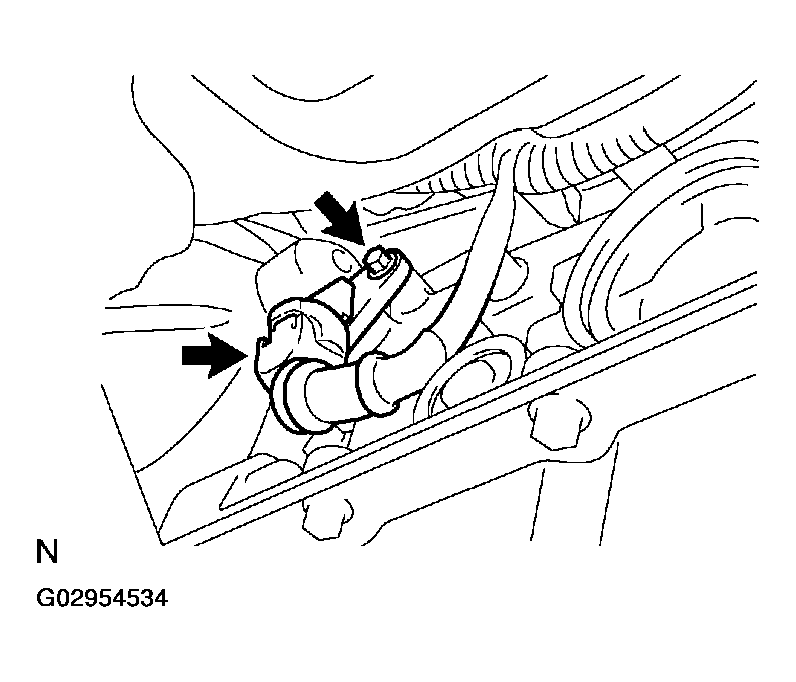

- REMOVE VEHICLE SPEED SENSOR
- Disconnect the sensor connector.
- Remove the bolt and sensor.
- Remove the O-ring from the sensor.
- INSTALL VEHICLE SPEED SENSOR
- Coat a new O-ring with ATF and install it to the sensor.
- Install the sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- Connect the sensor connector.

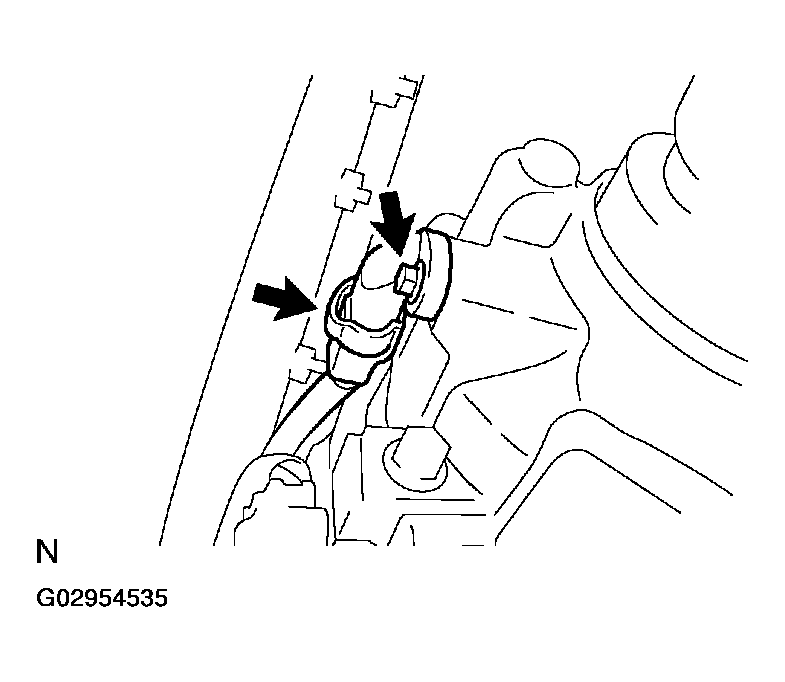

- INSTALL O/D DIRECT CLUTCH SPEED SENSOR
- Coat a new O-ring with ATF and install it to the sensor.
- Install the sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- Connect the sensor connector.
