Terminals Of ECM: Notes
HINT:

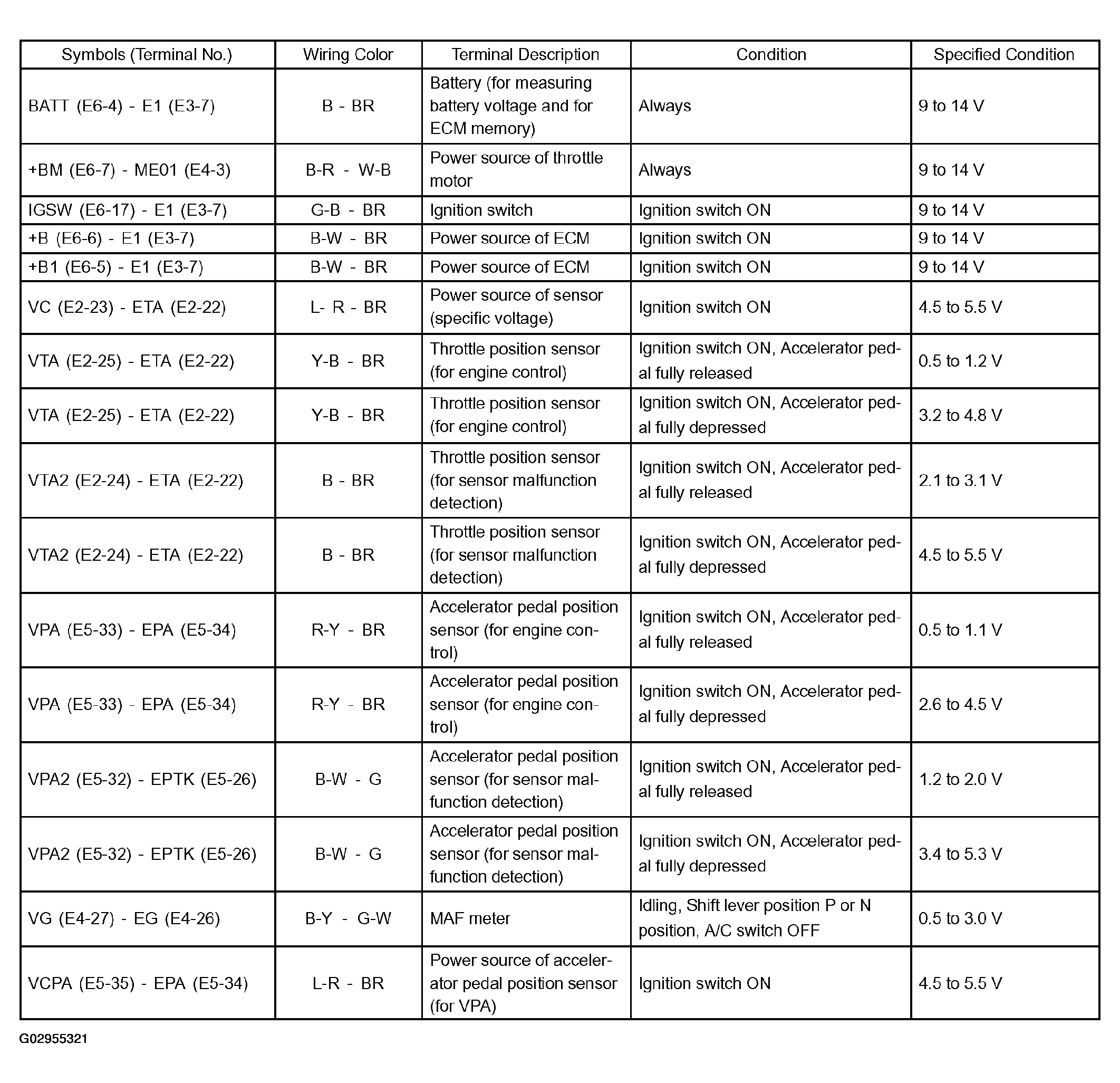

Each ECM terminal's standard normal voltage is shown in Fig 2.
In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard normal voltage between the terminals is shown under "Specific Condition".

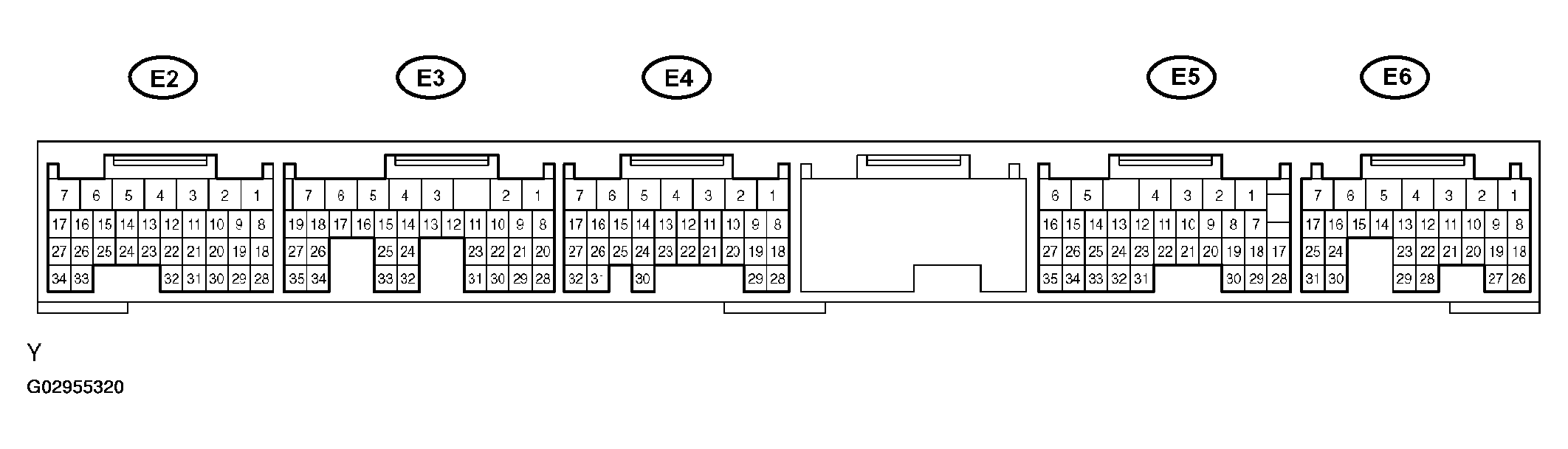

Use the illustration above as a reference for the ECM terminals.
